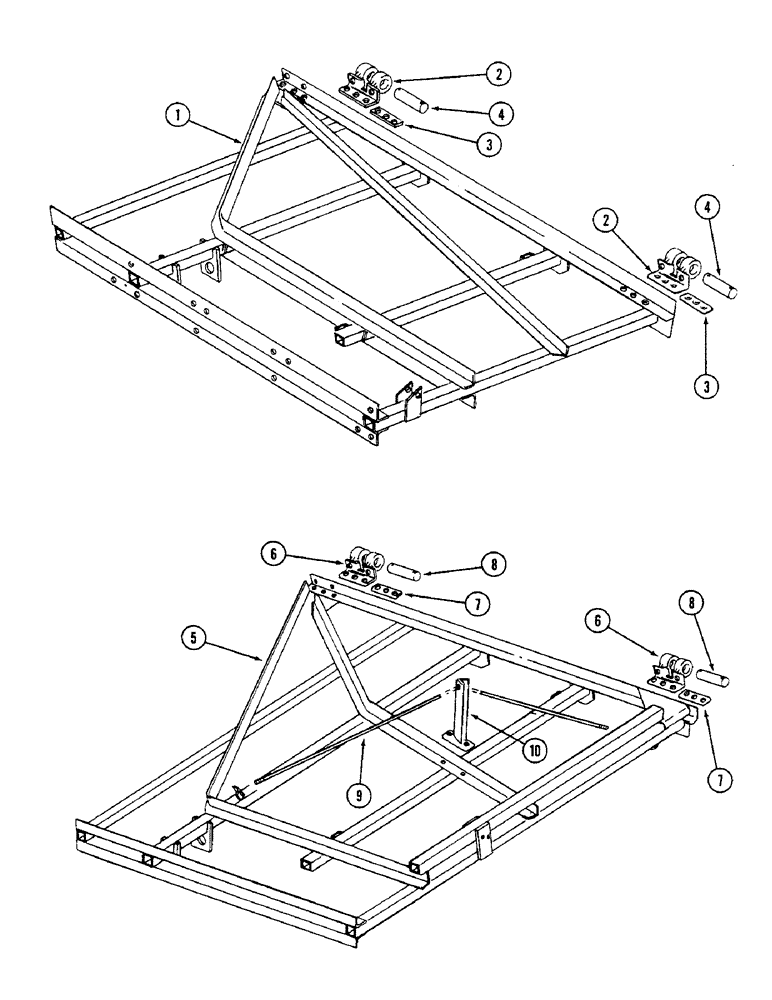

Запчасти Case IH 4500 (9-056) - WING FRAME, WING TYPE MODELS, 22 FOOT 6 INCH BASIC SIZE (09) - CHASSIS/ATTACHMENTS

1

813414C2

FRAME ASSEMBLY - left

1шт.

1

813415C2

FRAME

ASSEMBLY - right

1шт.

2

592323R1

BRACKET

- wing hinge outer

4шт.

3

592322R1

BAR

PLATE - bracket filler

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

20шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

20шт.

4

592324R1

PIN

- hinge pivot

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

5

813380C3

FRAME

ASSEMBLY - left, 31 foot 6 inch basic size

1шт.

5

813381C3

FRAME ASSEMBLY - right, 31 foot 6 inch basic size

1шт.

6

592323R1

BRACKET

- wing hinge outer, 31 foot 6 inch basic size

4шт.

7

592322R1

BAR

PLATE - bracket filler, 31 foot 6 inch basic size

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

31 foot 6 inch basic size Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

31 foot 6 inch basic size Hex, 1/2"-13 x 1 3/4", G5

8шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

31 foot 6 inch basic size Hex, 1/2"-13 x 2", G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 31 foot 6 inch basic size 1/2"

20шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 31 foot 6 inch basic size 1/2"-13, G5

20шт.

8

592324R1

PIN

- hinge pivot, 31 foot 6 inch basic size

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", 31 foot 6 inch basic size

8шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

1/32 x 1-3/4 x 7/64" basic size

1шт.

9

813221C1

ROD

- wing frame truss, 31 foot 6 inch basic size

2шт.

425-1010

NUT,5/8"-11, G5

31 foot 6 inch basic size 5/8"-11, G5

8шт.

10

813495C1

SUPPORT

ASSEMBLY - truss rod, left, 31 foot 6 inch basic size

1шт.

10

813213C1

SUPPORT

ASSEMBLY - truss rod, right, 31 foot 6 inch basic size

1шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, 31 foot 6 inch basic size

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 31 foot 6 inch basic size 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 31 foot 6 inch basic size 1/2"-13, G5

4шт.
