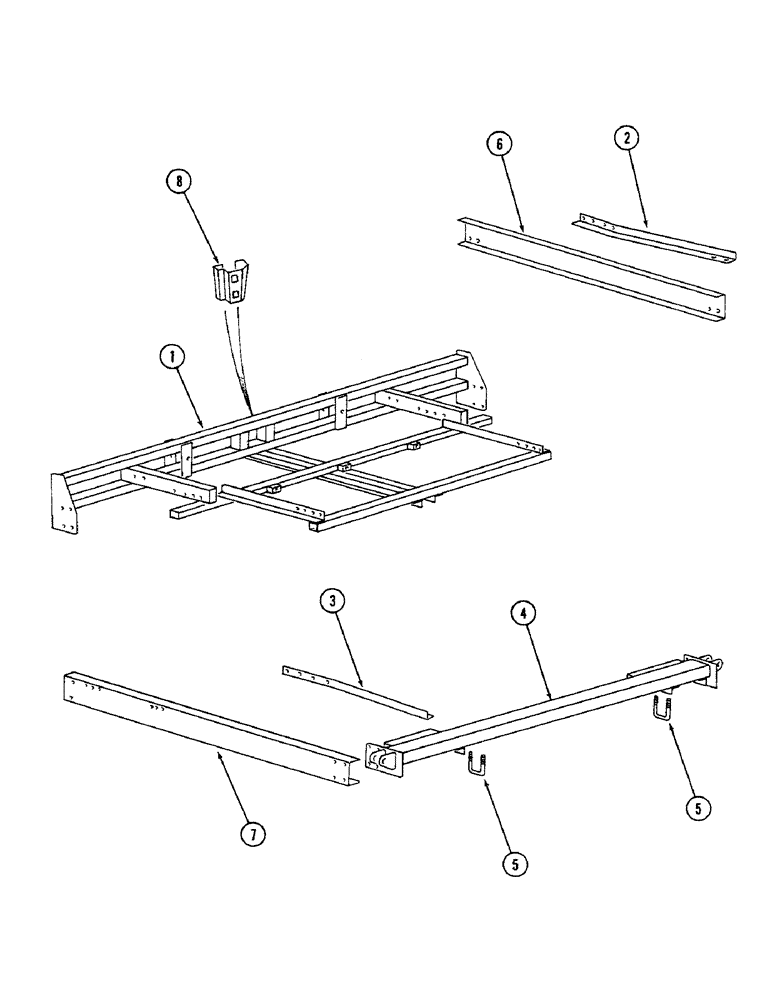

Запчасти Case IH 4500 (9-050) - MAIN FRAME, WING TYPE MODELS, 22 FOOT 6 INCH BASIC SIZE (09) - CHASSIS/ATTACHMENTS

1

811554C91

FRAME

ASSEMBLY - main (Decals and reflectors not shown, see page 9-105 or 9-107)

1шт.

1254170C1

DECAL

- caution, general

1шт.

810170C2

PRODUCT GRAPHIC

DECAL - warning

2шт.

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

1284365C2

REFLECTOR

- amber

1шт.

2

813249C1

ANGLE - frame intermediate connection, left

1шт.

3

813250C1

ANGLE - frame intermediate connection, right

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

4

813411C1

TUBE

ASSEMBLY - frame front brace

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

2шт.

425-1010

NUT,5/8"-11, G5

4шт.

6

813480C2

CHANNEL

- outer connecting, left (See Note A)

1шт.

7

813481C2

CHANNEL

- channel connecting, right (See Note A)

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

8

398976R1

BRACKET

- SMV emblem mounting (See page 9-103)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
