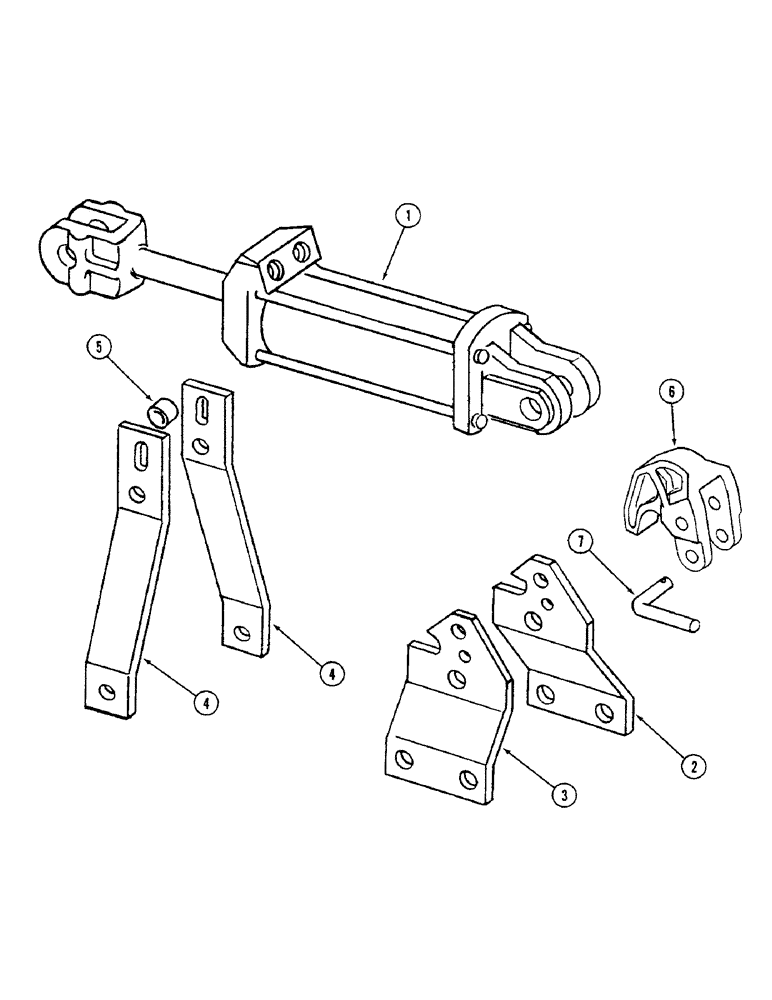

Запчасти Case IH 4500 (9-048) - DEPTH CONTROL CYLINDER MOUNTING, TRAIL BEHIND MODELS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY (See page 8-11)

1шт.

2

591527R1

BRACKET

- cylinder mounting, left (See Note A)

1шт.

3

591528R1

BRACKET

- cylinder mounting, right (See Note A)

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

5шт.

4

591529R1

ARM

- rockshaft hydraulic locking

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

5

5528S

SPACER

- locking arm

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

6

526263R1

RETAINER

- cylinder (Replaces 811032C1)

1шт.

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

7

22966R1

HEADED PIN,5/8" x 2 3/8"

PIN - retainer locking (Replaces 602801R1)

1шт.

591107R1

COTTER PIN

- cotter, quick attachable

1шт.
