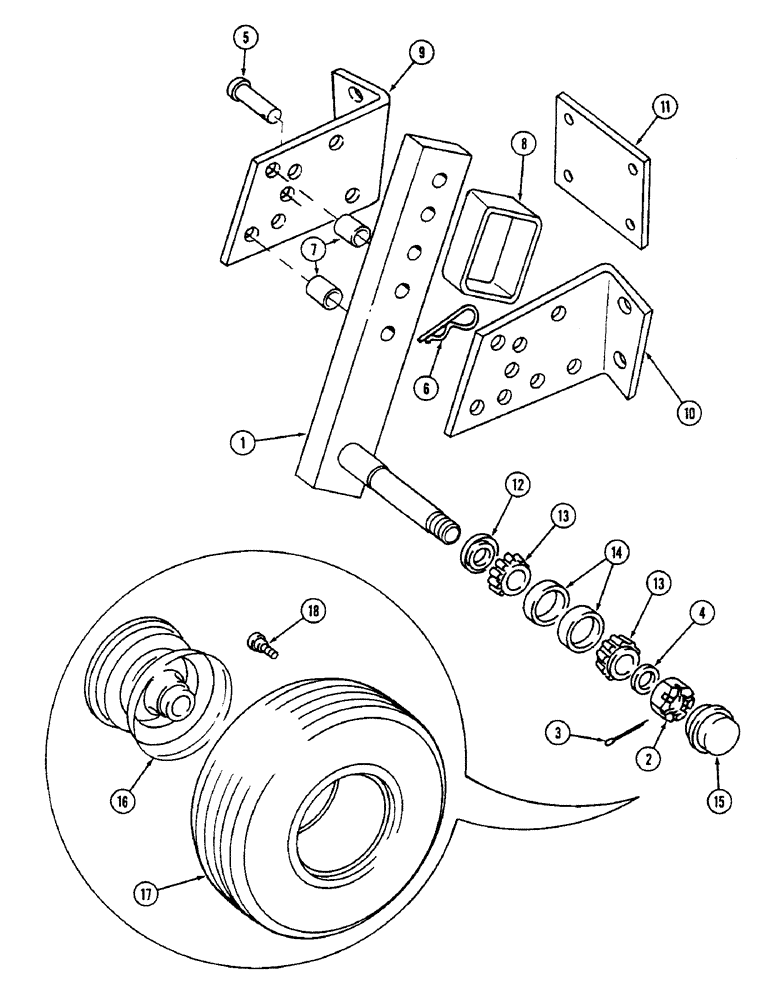

Запчасти Case IH 4500 (9-044) - PNEUMATIC GAUGE WHEEL AND MOUNTING, TRAIL BEHIND MODELS, SLIDE ADJUSTING TYPE (09) - CHASSIS/ATTACHMENTS

1

813574C91

AXLE

ASSEMBLY - gauge wheel

1шт.

2

161387C1

NUT

- axle spindle, hex, slotted, 7/8 inch NF

1шт.

3

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

4

95-81047

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

1шт.

5

21673R1

HEADED PIN,3/4" x 2 1/2"

PIN - headed, 3/4 x 2-1/2 inch

1шт.

6

1978738C1

HAIR PIN COTTER

quick attachable

1шт.

7

810242C1

SPACER

- support

2шт.

8

810210C1

SPACER

- support

1шт.

9

810238C1

SUPPORT

- axle assembly, left

1шт.

10

810239C1

SUPPORT

- axle assembly, right

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

5шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

11

810394C1

BAR

PLATE - support mounting

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

12

T27809

SEAL

- oil

1шт.

13

463911R91

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing

2шт.

14

572564R1

BEARING CUP

CUP - tapered roller bearing

2шт.

15

811012C1

CAP

- hub

1шт.

16

811010C1

WHEEL

- gauge

1шт.

17

TIRE - 5.70 x 5.00 x 8 4PR, tubeless

1шт.

18

810429C1

VALVE

- tubeless tire, metal

1шт.
