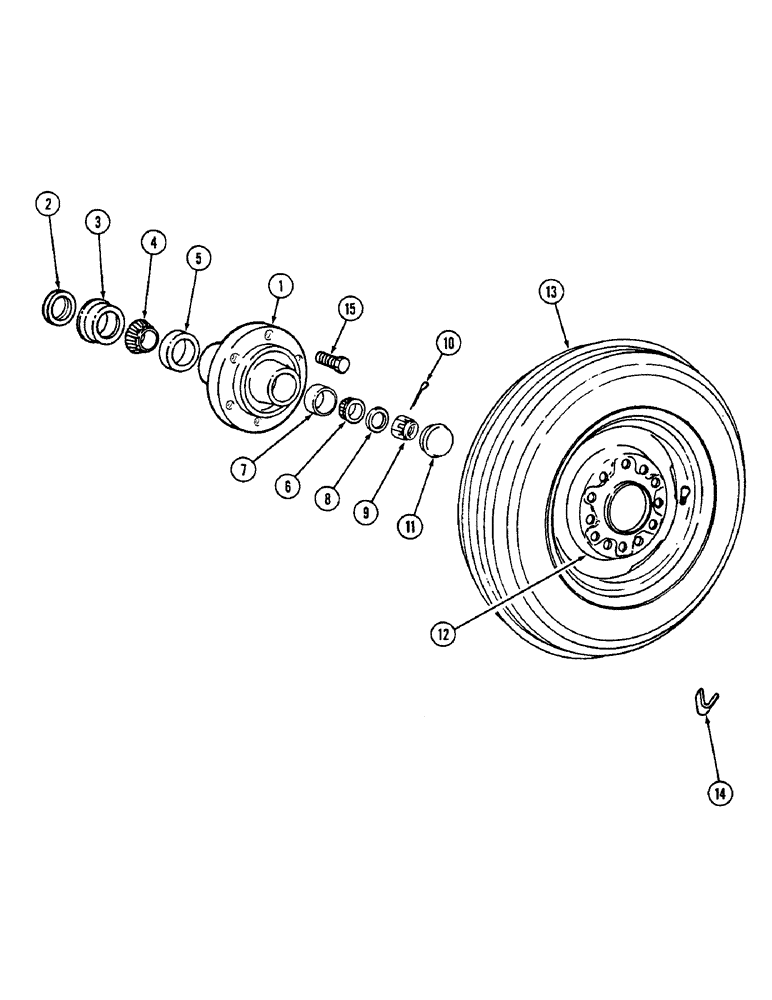

Запчасти Case IH 4500 (9-042) - MAIN FRAME WHEEL AND HUB, TRAIL BEHIND MODELS (09) - CHASSIS/ATTACHMENTS

1

591535R1

HUB

- four bolt holes (Early 8 foot 6 inch models)

1шт.

1

810087C2

HUB

- six bolt holes

1шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

3

472222R1

SLEEVE

- wear, oil seal

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, inner

1шт.

5

651817R1

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - tapered roller bearing, outer

1шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

651814R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

8

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

9

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

10

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

11

B13280

HUB CAP

CAP - wheel hub

1шт.

12

455169R92

WHEEL

- 15 x 4-1/2 KB, four bolt holes (Early 8 foot 6 inch models)

1шт.

12

T25842

RIM

WHEEL - 14 X 5 KB, six bolt holes (Replaces 463034R1)

1шт.

12

T53527

WHEEL

- 15 x 5 KB, six bolt holes (Replaces 622192R91)

1шт.

13

TIRE AND TUBE - 7.50 x 14, 4 ply implement tread

1шт.

13

TIRE AND TUBE - 7.50 x 14 (Used auto)

1шт.

13

TIRE AND TUBE - 7.00 x 14 (Used auto)

1шт.

13

TIRE AND TUBE - 7.50 x 14, 4 ply W1 tubeless

1шт.

810768C1

VALVE

- tubeless tire, steel

1шт.

14

811382C1

PACKAGE

- tire valve guard (Includes 12 guards and fitting instructions)

1шт.

15

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch

1шт.
