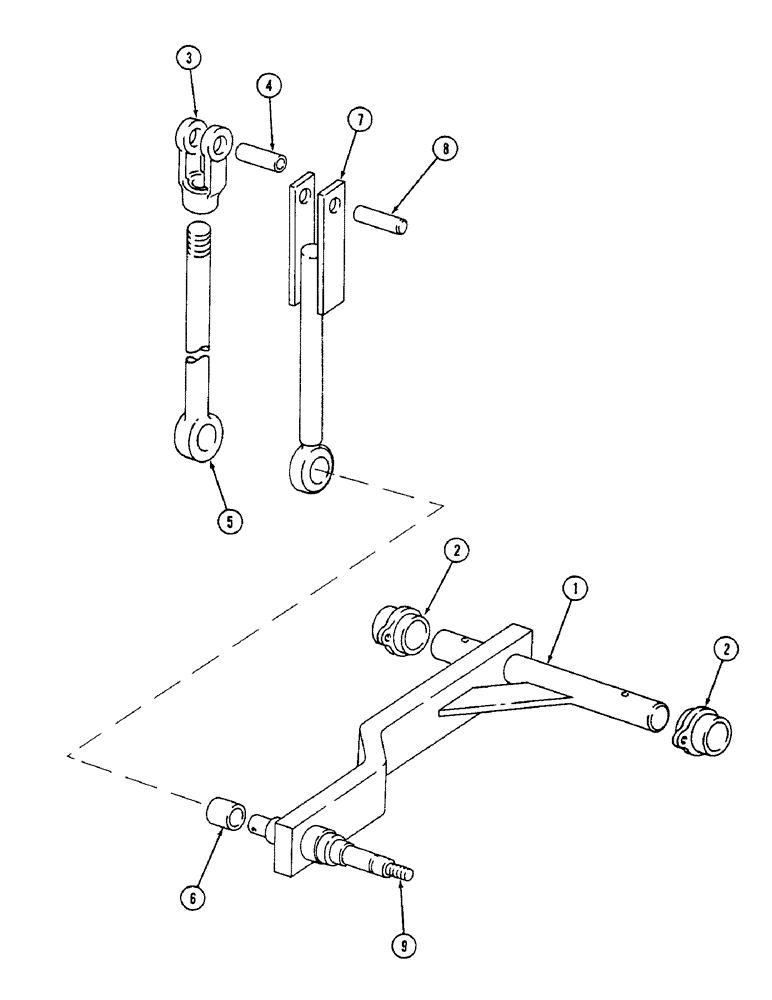

Запчасти Case IH 4500 (9-040) - MAIN FRAME AXLE, TRAIL BEHIND MODELS (09) - CHASSIS/ATTACHMENTS

1

813289C92

AXLE

ASSEMBLY - main frame

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

432-2048

COTTER PIN,5/16" x 3"

Pin, Split (Cotter), , in support rod 5/16" x 3"

4шт.

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

4шт.

2

813201C1

BUSHING,44.58mm ID x 97.79mm OD x 38.1mm L

BEARING - axle pivot

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

3

591536R1

YOKE

- lift link eyebolt

1шт.

4

591537R2

PIN

- lift link eyebolt

1шт.

19479R1

PIN,1/4" x 2", Coiled

2шт.

5

811031C1

BOLT,1 1/4" - 7 x 18.20"

- lift link eye, left

1шт.

6

608323R2

BUSHING,32.16mm ID x 41.27mm OD x 40.89mm L

- lift rod

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

495-81088

WASHER,1.66" ID x 2.25" OD x 0.06" Thk

- 1-21/32 x 2-1/4 x 3/64 inch

2шт.

7

811006C2

ROD ASSY.

ROD ASSEMBLY - lift link, right

1шт.

8

813174C1

PIN

- lift link rod (Replaces 591537R1)

1шт.

813175C1

PIN

- lock

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

9

854704C91

SPINDLE

- axle service

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
