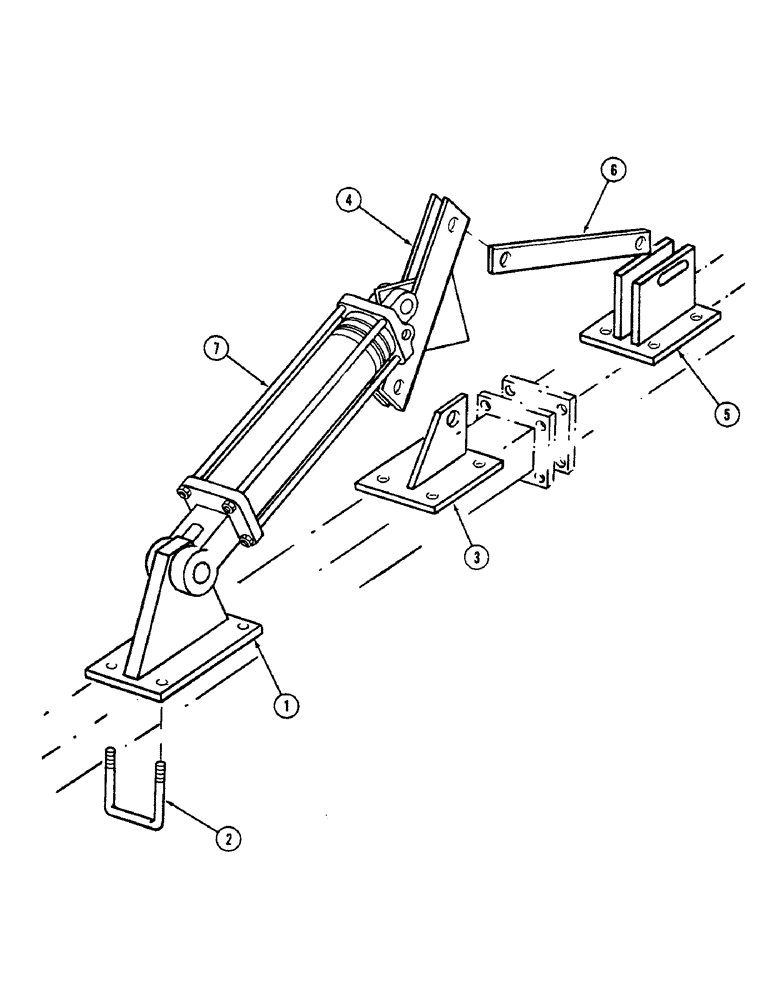

Запчасти Case IH 4500 (9-036) - C FRAME EXTENSION HYD. LIFT, TRAIL BEHIND MODELS, 16 FOOT 6 IN. BASIC SIZE & LARGER W/ 6 IN. SPACING (09) - CHASSIS/ATTACHMENTS

1

810245C1

SUPPORT

ASSEMBLY - hydraulic cylinder

2шт.

2

591609R1

BOLT

U-BOLT - support mounting

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

3

810227C1

SUPPORT

ASSEMBLY - lift lever

2шт.

591609R1

BOLT

U-BOLT - support mounting

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

4

810223C1

LEVER

ASSEMBLY - extension lift

2шт.

21377R1

HEADED PIN,3/4" x 2"

PIN - headed, lever assembly to support, 3/4 x 2 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

PIN - cotter, 1/4 x 1-1/4 inch

2шт.

5

810229C1

SUPPORT

ASSEMBLY - extension lift

2шт.

591609R1

BOLT

U-BOLT - support mounting

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

6

810226C1

BAR

- extension lift connection

2шт.

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, bar to support assembly, 3/4 x 2-1/4 inch

2шт.

21377R1

HEADED PIN,3/4" x 2"

PIN - headed, bar to lift lever, 3/4 x 2 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

PIN - cotter, 1/4 x 1-1/4 inch

4шт.

495-81041

WASHER,25/32" x 1 1/2" x .060"

- 25/32 x 1-1/2 x 3/64 inch

8шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY - (See page 8-7 or 8-9)

2шт.
