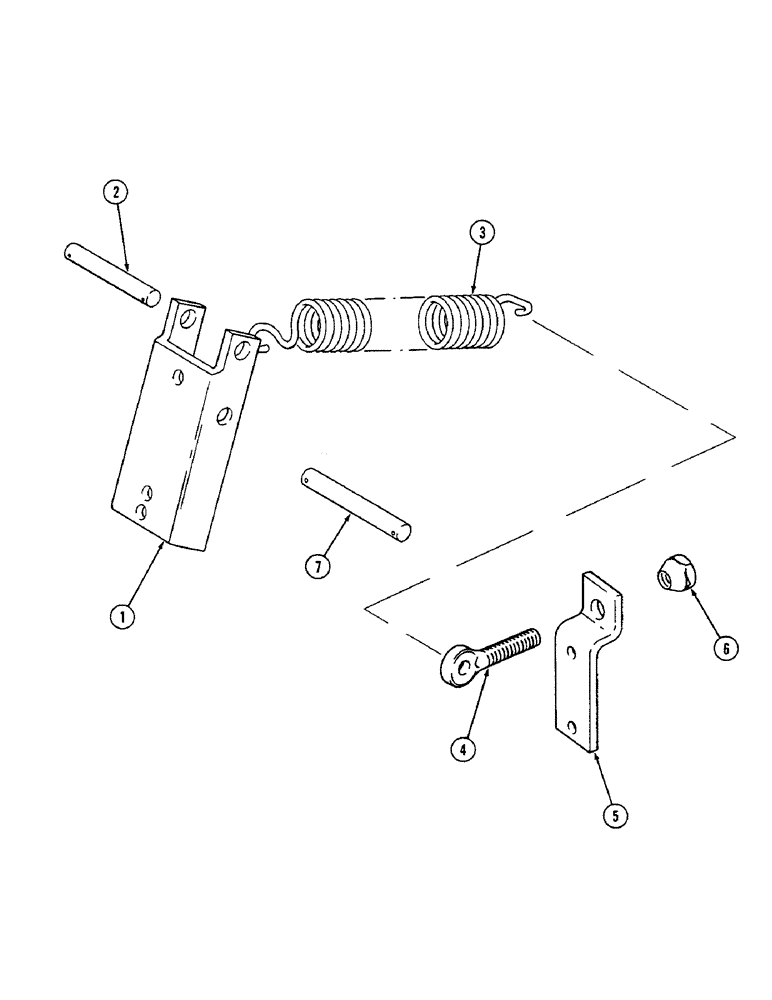

Запчасти Case IH 4500 (9-034) - C FRAME EXTENSION LIFT HELPER SPRING, TRAIL BEHIND MODELS (09) - CHASSIS/ATTACHMENTS

1

813173C1

CHANNEL

- helper spring

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

2

22106R1

HEADED PIN,3/4" x 3 3/4"

PIN - spring retaining, 3/4 x 3-3/4 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

3

590258R1

VALVE SPRING

SPRING - lift helper

2шт.

4

496256R2

BOLT,3/4" - 10 x 5 5/8", Full Thd

- spring eye

2шт.

5

813275C1

ANCHOR

- helper spring

2шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

6

591650R1

NUT

- eye bolt

2шт.

7

591647R1

AXLE PIN

PIN - hinge

2шт.
