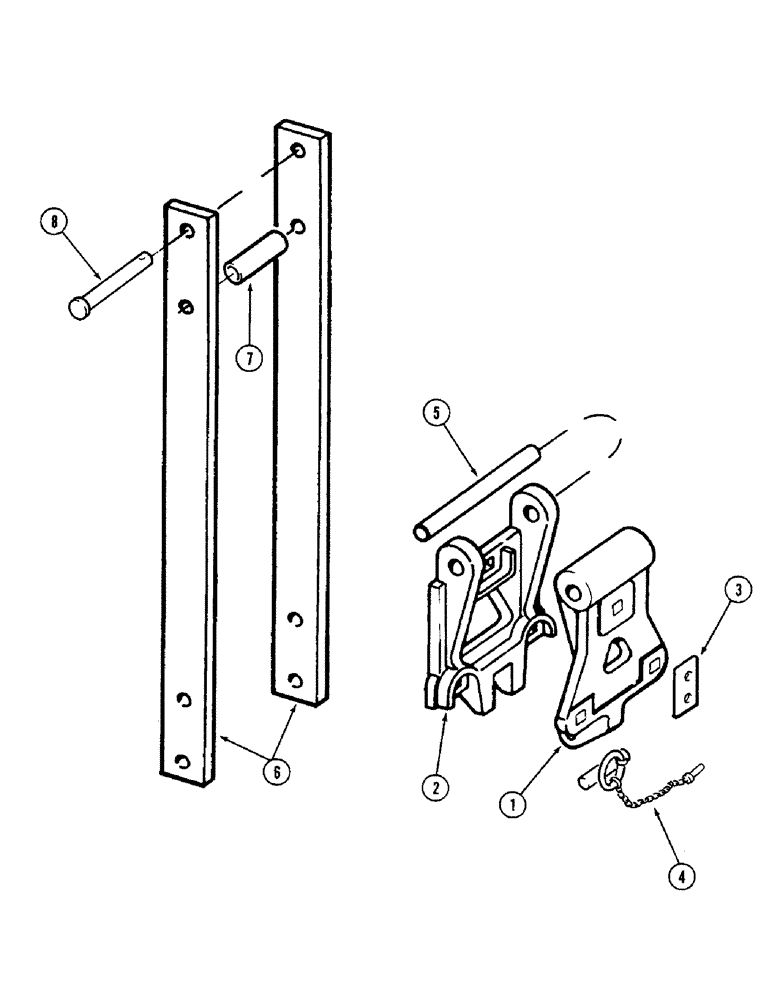

Запчасти Case IH 4500 (9-032) - C FRAME EXTENSION HINGES, TRAIL BEHIND MODELS (09) - CHASSIS/ATTACHMENTS

1

591606R1

BRACKET

- extension outer hinge

4шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

4шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

2

591605R1

HINGE

BRACKET - extension hinge, inner

4шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

3

591635R1

LOCKING PLATE

- hinge lock pin anchor

4шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

4

375893R91

AXLE PIN

PIN - outer hinge lock

4шт.

5

591633R1

AXLE PIN

PIN - hinge

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

6

591634R1

BAR

- extension support

4шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

23372S

SPACER,1/2" Pipe x 2 9/16"

- support bar, 1/2 x 2-9/16 inch

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

8

23172R1

PIN

- headed, 1/2 x 3-3/4 inch

2шт.

1978738C1

HAIR PIN COTTER

quick attachable

2шт.
