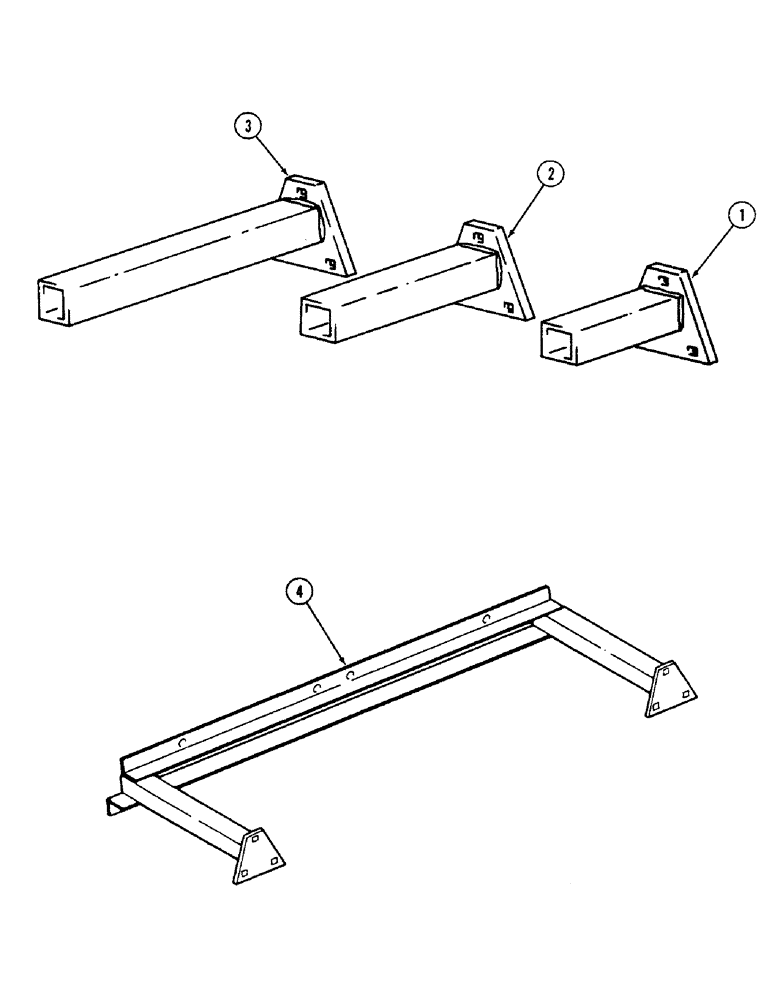

Запчасти Case IH 4500 (9-030) - FRAME EXTENSIONS, TRAIL BEHIND MODELS, FRAME STUB EXTENSIONS (09) - CHASSIS/ATTACHMENTS

1

591499R11

EXTENSION

ASSEMBLY - short

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

3шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

2

591597R11

EXTENSION

ASSEMBLY - medium

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

3шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

3

591598R11

TUBE

EXTENSION ASSEMBLY - long

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

4

591599R93

EXTENSION

ASSEMBLY - C frame

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch, C frame extension

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , C frame extension 1/2"

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, C frame extension 1/2"-13, G5

6шт.
