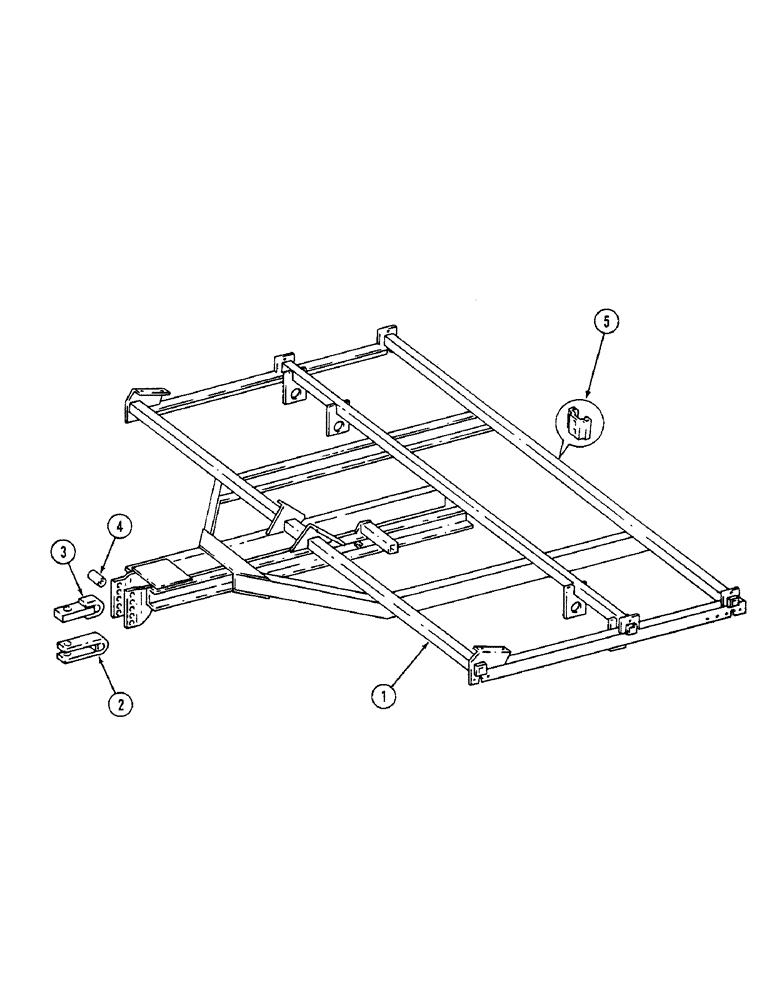

Запчасти Case IH 4500 (9-026) - MAIN FRAME, TRAIL BEHIND MODELS, 8 FOOT 6 INCH BASIC SIZE (09) - CHASSIS/ATTACHMENTS

1

811534C92

FRAME

ASSEMBLY - main (Decals and reflectors not shown, see page 9-105 or 9-107)

1шт.

1254170C1

DECAL

- caution, general

1шт.

810170C2

PRODUCT GRAPHIC

DECAL - warning

2шт.

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

1284365C2

REFLECTOR

- amber

1шт.

2

1279227C2

TRAILER HITCH

CLEVIS ASSEMBLY - hitch, standard (Replaces 608499R21 clevis)

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

- hex, 1 NC x 5-1/2 inch

1шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

3

605866R91

TOW BAR

TONGUE ASSEMBLY - hitch, heavy duty (Machines built prior to March 1981)

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

- hex, 1 NC x 5-1/2 inch

1шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

4

597326R1

SPACER

- hitch tongue (Machines built prior to March 1981)

1шт.

5

398976R1

BRACKET

- SMV emblem mounting (See page 9-103)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
