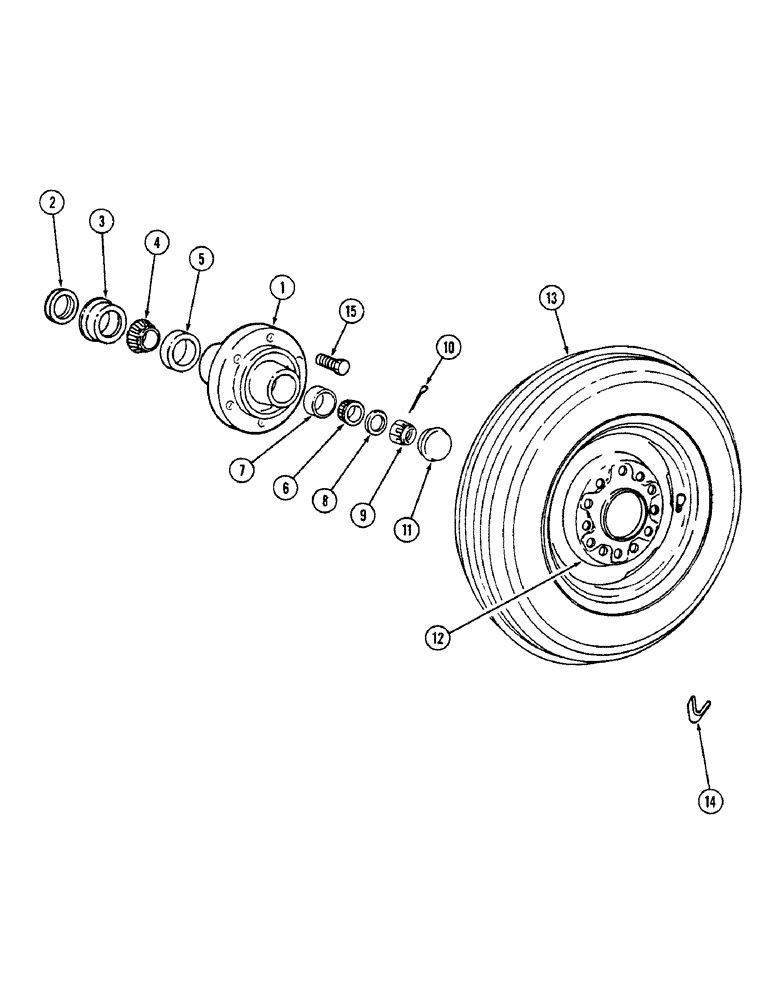

Запчасти Case IH 4500 (9-022) - PNEUMATIC GAUGE WHEEL AND HUB, DIRECT MOUNTED MODELS, CRANK ADJUSTING TYPE, BUILT PRIOR TO JUNE 1979 (09) - CHASSIS/ATTACHMENTS

1

591535R1

HUB

- gauge wheel

1шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

3

472222R1

SLEEVE

- wear, oil seal

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, inner

1шт.

5

651817R1

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - tapered roller bearing, outer

1шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

651814R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

8

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

9

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

10

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

11

B13280

HUB CAP

CAP - hub

1шт.

12

609377R1

RIM

WHEEL HALF - 4.00 X 9E, without valve hole (8 hole mounting)

1шт.

12

490311R1

WHEEL

HALF - 4.00 x 9E, without valve hole (5 hole mounting)

1шт.

12

609378R1

NO LONGER SERVICED

WHEEL HALF - 4.00 x 9E, with valve hole (8 hole mounting)

1шт.

12

490312R1

WHEEL

HALF - 4.00 x 9E, with valve hole (5 hole mounting)

1шт.

13

TIRE AND TUBE, 6.00 x rib imlement, 4 ply

1шт.

14

811382C1

PACKAGE

- tire valve guard (Includes 12 guards and fitting instructions)

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Wheel halves together) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

15

181696

BOLT - hex, 1/2 NF X 1 inch (Wheel halves to hub)

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.
