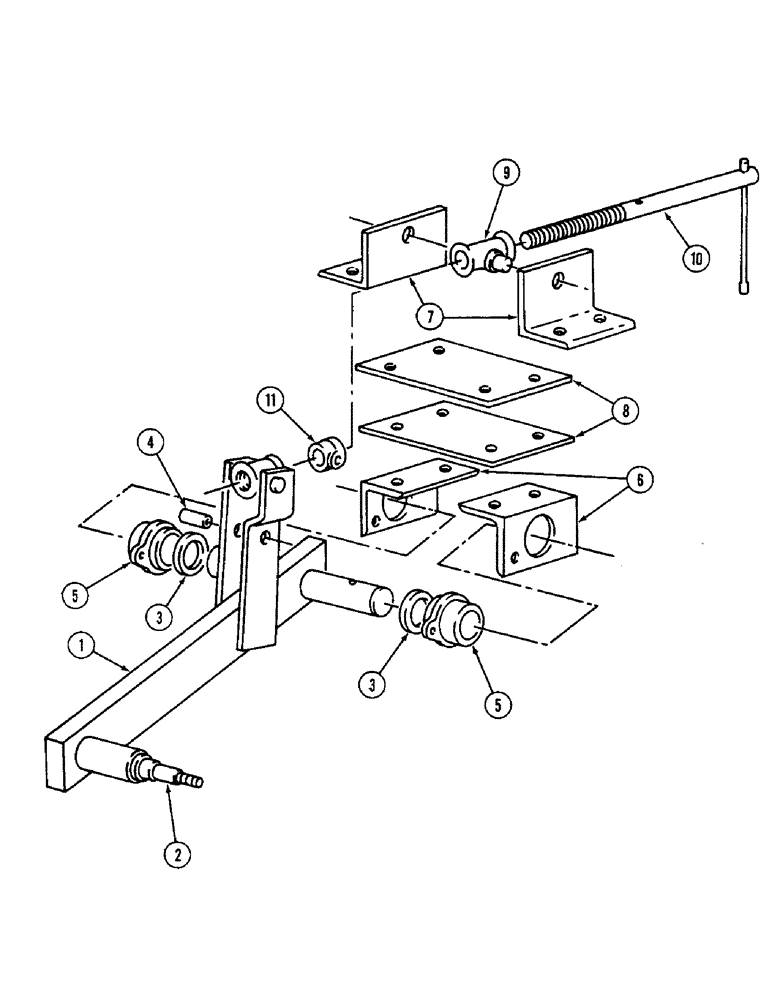

Запчасти Case IH 4500 (9-020) - PNEUMATIC GAUGE WHEEL MOUNTING, DIRECT MOUNTED MDLS., CRANK ADJUSTING TYPE, BUILT PRIOR TO JUNE 1979 (09) - CHASSIS/ATTACHMENTS

1

813279C91

AXLE

ASSEMBLY - gauge wheel, left

1шт.

The upright swivel on this assembly is P/N 600567R1. 5 threads per inch class 2G. Length is 2 1/8 by 1 9/16.

1шт.

2

591616R2

SPINDLE

- axle, welded

1шт.

1

813280C91

AXLE ASSEMBLY - gauge wheel, right

1шт.

2

591616R2

SPINDLE

- axle, welded

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

108659

PIN

- cotter, 5/16 x 2-3/4 inch

2шт.

3

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

2шт.

4

M22613

SPACER,1/2" X-Strng Pipe x 1"

- pipe, 1/2 x 1 inch

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

5

813201C1

BUSHING,44.58mm ID x 97.79mm OD x 38.1mm L

BEARING - axle pivot support

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

6

813276C1

ANGLE

BRACKET - wheel mounting

2шт.

7

813277C1

ANGLE

BRACKET - level screw mounting

2шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

8

813278C1

BAR

PLATE - gauge wheel mounting

2шт.

9

SA1658

ADJUSTMENT SCREW

TRUNNION - levelling screw

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

10

591620R11

SCREW

- wheel levelling

1шт.

11

590303R1

COLLAR CLAMP

COLLAR - levelling screw

1шт.

1380S

PIN

- headed, 5/16 x 1-3/4 inch

1шт.

32-88

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.
