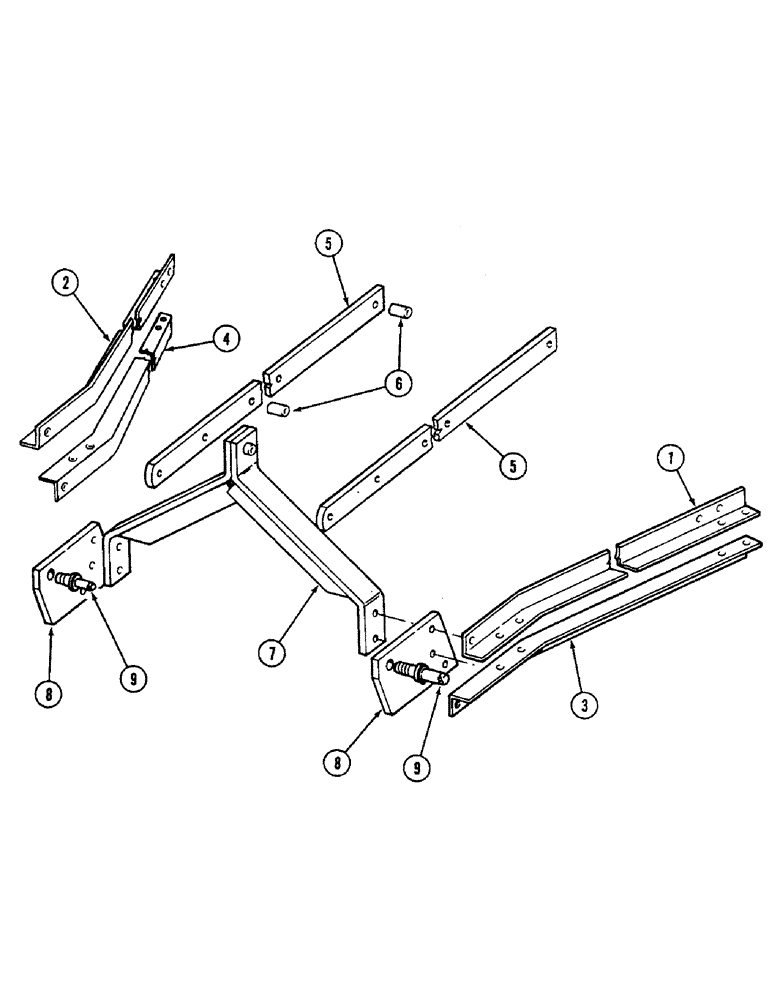

Запчасти Case IH 4500 (9-014) - THREE POINT HITCH, DIRECT MOUNTED MODELS, 8 FOOT 6 INCH BASIC SIZE (09) - CHASSIS/ATTACHMENTS

1

591562R2

ANGLE

- hitch upper support, left

1шт.

2

591563R2

ANGLE

- hitch upper support, right

1шт.

3

591564R2

ANGLE

- hitch lower support, left

1шт.

4

591565R2

ANGLE

- hitch lower support, right

1шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

5

597804R1

BAR

- hitch connecting

2шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

6

608460R1

SPACER

- hitch connecting bar

2шт.

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

7

591555R91

TRAILER HITCH

HITCH ASSEMBLY - three point

1шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

8

597803R1

BAR

PLATE - hitch angle support

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

9

472790R2

STUD

PIN - Category II lower link

2шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.
