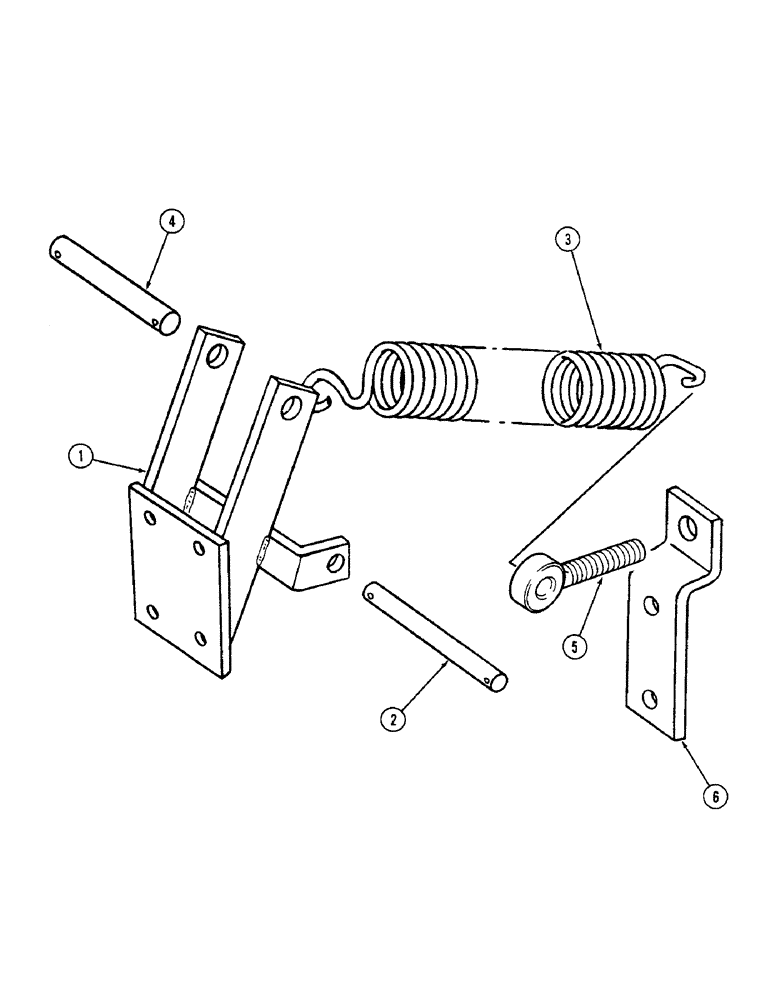

Запчасти Case IH 4500 (9-008) - C FRAME EXTENSION LIFT HELPER SPRING, DIRECT MOUNTED MODELS (09) - CHASSIS/ATTACHMENTS

1

591638R91

ANCHOR

BRACKET ASSEMBLY - helper spring, left

1шт.

1

591639R91

ANCHOR

BRACKET ASSEMBLY - helper spring, right

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

2

591647R1

AXLE PIN

PIN - hinge

2шт.

3

590258R1

VALVE SPRING

SPRING - lift helper

2шт.

4

591649R1

PIN

- spring retaining

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

5

496256R2

BOLT,3/4" - 10 x 5 5/8", Full Thd

- spring eye

2шт.

591650R1

NUT

- eye bolt

2шт.

6

591651R1

ANCHOR

- helper spring

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.
