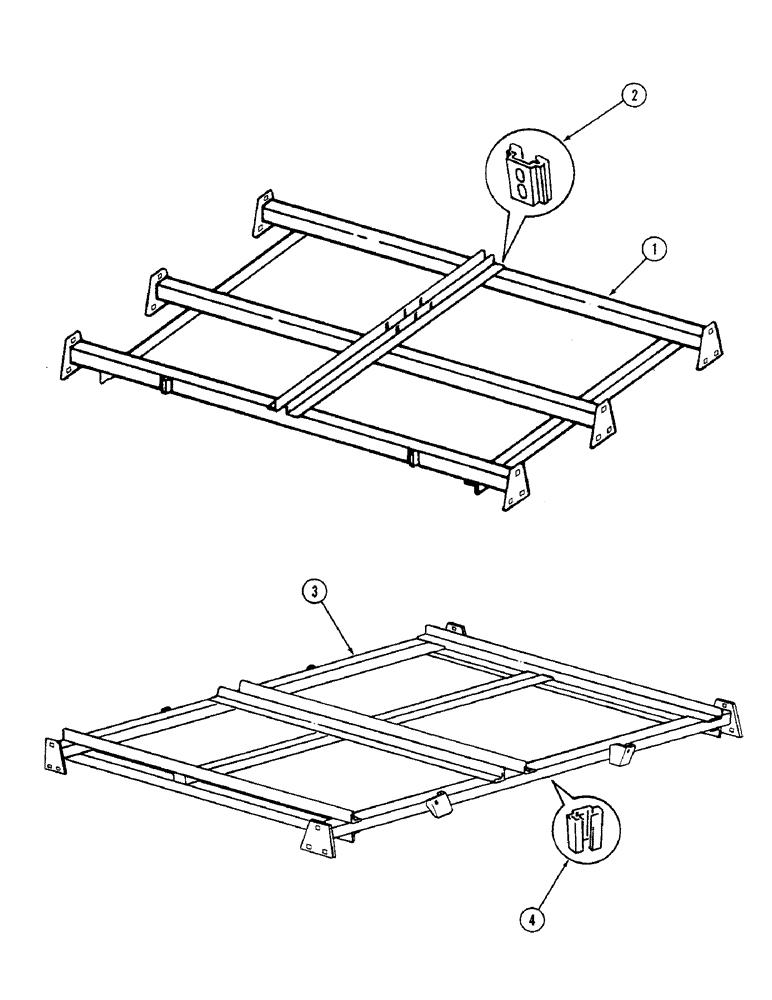

Запчасти Case IH 4500 (9-002) - MAIN FRAME, DIRECT MOUNTED MODELS, 8 FOOT 6 INCH BASIC SIZE (09) - CHASSIS/ATTACHMENTS

1

811518C92

FRAME

ASSEMBLY - main (Decals and reflectors not shown, see page 9-105 or 9-107)

1шт.

1254170C1

DECAL

- caution, general

1шт.

810170C2

PRODUCT GRAPHIC

DECAL - warning

2шт.

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

1284365C2

REFLECTOR

- amber

1шт.

2

398976R1

BRACKET

- SMV emblem mounting (See page 9-103)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

3

811522C93

FRAME

ASSEMBLY - main (Decals and reflectors not shown, see page 9-105 or 9-107), 12 foot 6 inch basic size

1шт.

1254170C1

DECAL

- caution, general, 12 foot 6 inch basic size

1шт.

810170C2

PRODUCT GRAPHIC

DECAL - warning, 12 foot 6 inch basic size

2шт.

1284374C1

REFLECTOR,Reflector Red

- red, 12 foot 6 inch basic size

2шт.

1284365C2

REFLECTOR

- amber, 12 foot 6 inch basic size

1шт.

4

398976R1

BRACKET

- SMV emblem mounting (See page 9-103), 12 foot 6 inch basic size

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch, 12 foot 6 inch basic size

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , 12 foot 6 inch basic size 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, 12 foot 6 inch basic size

2шт.
