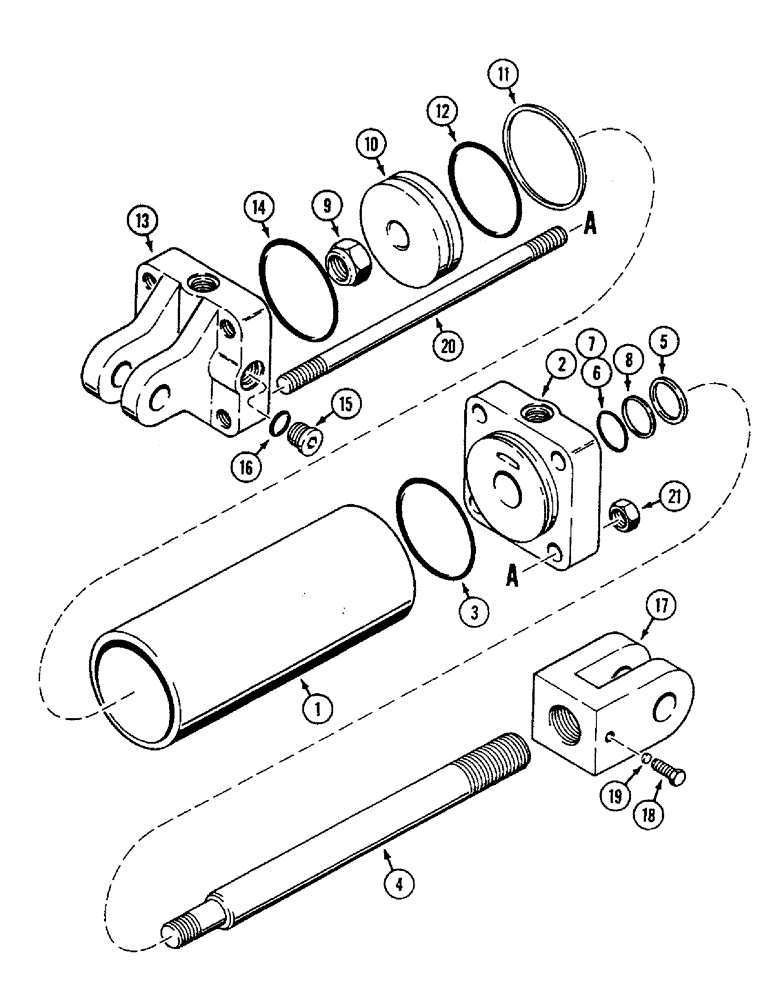

Запчасти Case IH 4500 (8-086) - HYDRAULIC CYLINDER, FRONT AND REAR PORTS, 3-1/2 ID X 8 INCH STROKE, IOWA (08) - HYDRAULICS

140683C94

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke (No longer available, order 1272147C91 cylinder assembly, page 8-67)

1шт.

1

142454C1

SLEEVE

TUBE - cylinder

1шт.

2

1260879C1

HEAD

GLAND - cylinder (Replaces 145476C1)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

4

145231C1

PISTON ROD

ROD - piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod (Use with 1260879C1 gland, see Ref 2)

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD (Use with 145476C1 gland, see Ref 2)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, piston rod o-ring (Use with 145476C1 gland, see Ref 2)

1шт.

9

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

10

145422C2

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD

1шт.

13

142453C3

HEAD

- cylinder, closed end

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

15

224582C1

PLUG

- hex socket, 3/4 inch NF (Replaces 9410359)

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

17

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

18

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

21

425-1010

NUT,5/8"-11, G5

4шт.

84919C2

GASKET KIT

KIT - seal, use with 1260879C1 gland, includes Ref 3, 5, 6, 11, 12, 14, 16 and (2) backup rings and (2) wear rings not used on this cylinder

1шт.

145574C1

KIT

- seal, use with 145476C1 gland, includes Ref 3, 5, 7, 11, 12, 14 and 16

1шт.
