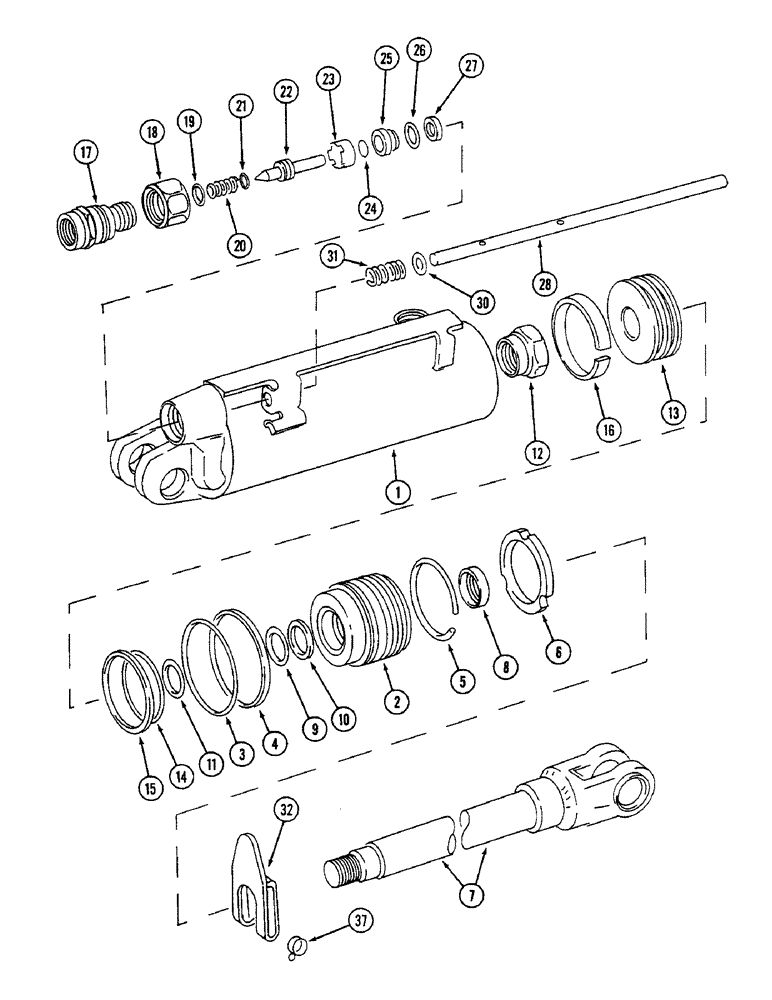

Запчасти Case IH 4500 (8-084) - HYDRAULIC CYLINDER, WITH FRONT AND REAR PORTS, 3-1/2 ID X 8 INCH STROKE, CESSNA (08) - HYDRAULICS

812368C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke (No longer available, order 149920C92 cylinder assembly, page 8-81)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

813007C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 813108C1.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 813108C1.

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

Part of seal kit P/N 813108C1.

1шт.

6

573697R1

BEARING LOCK NUT

- gland retainer

1шт.

7

812658C1

ROD

- piston

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 813108C1.

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 ID x 1-7/8 inch OD

1шт.

Part of seal kit P/N 813108C1.

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 813108C1.

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD

1шт.

Part of seal kit P/N 813108C1.

1шт.

12

691547R1

NUT

- piston rod

1шт.

13

813011C1

PISTON

- cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3-3/8 inch OD

1шт.

Part of seal kit P/N 813108C1.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

Part of seal kit P/N 813108C1.

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of seal kit P/N 813108C1.

1шт.

17

813057C1

FITTING

- stroke control port

1шт.

18

813016C1

NUT

- stroke control fitting

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 7/8 ID x 1-1/16 inch OD

1шт.

Part of seal kit P/N 813108C1.

1шт.

20

813078C1

SPRING

- plunger

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - stroke control plunger

1шт.

Part of seal kit P/N 813108C1.

1шт.

22

813079C1

PLUNGER

- stroke control

1шт.

23

813088C1

SPACER

- plunger

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - plunger retainer

1шт.

Part of seal kit P/N 813108C1.

1шт.

25

813105C1

RETAINER

- plunger

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - 5/8 ID x 13/16 inch OD

1шт.

Part of seal kit P/N 813108C1.

1шт.

27

NSS

NOT SOLD SEPARAT

WIPER - plunger shaft

1шт.

Part of seal kit P/N 813108C1.

1шт.

28

813106C1

ROD

- stroke control push

1шт.

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, , Not shown 5/32" x 5/8", Slotted

2шт.

30

495-81008

WASHER,.469" x 3/4" x .060"

- flat, 15/32 x 3/4 x 1/16 inch

1шт.

31

813107C1

SPRING

- push rod return

1шт.

32

810247C1

CLAMP

STOP - piston rod clamp (Replaces 811549C1 stop, 811550C1 spacer and attaching hardware)

1шт.

810248C1

STOP

SEGMENT - stop clamp (Not shown)

1шт.

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Not shown)

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (Not shown) 3/8", SAE

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC, Grade 8 (Not shown)

1шт.

37

813015C1

LOCK WASHER

- lock

1шт.

813108C1

SEAL KIT

- seal, Includes: Ref. 3 - 5, 8 - 11, 14 - 16, 19, 21, 24, 26 and 27

1шт.
