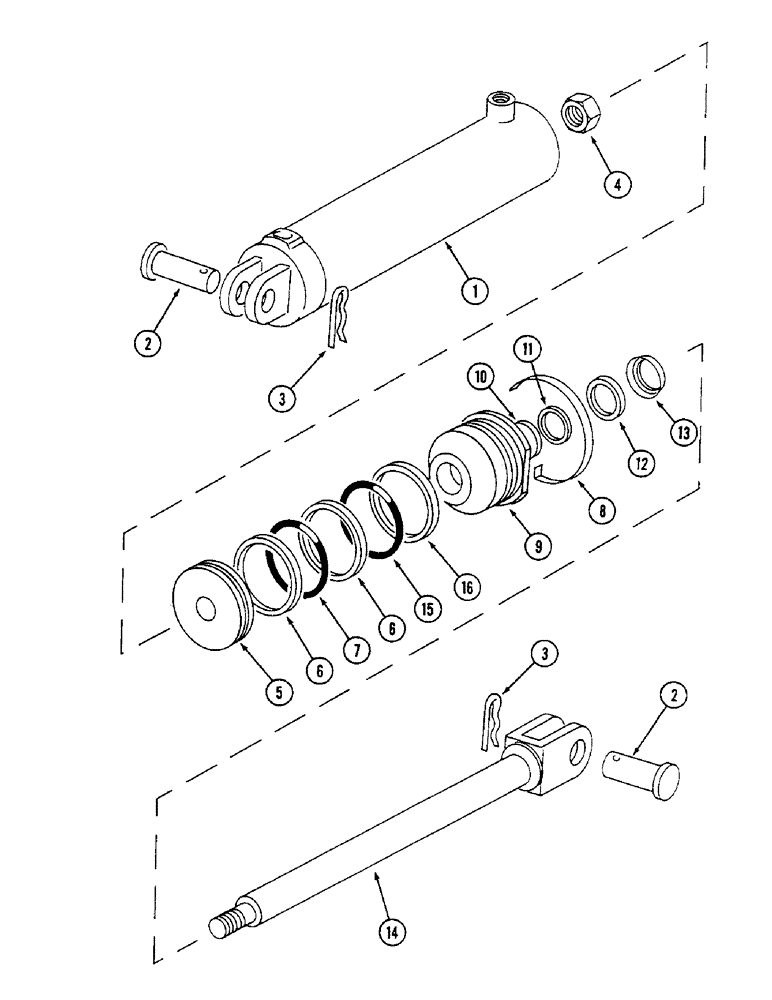

Запчасти Case IH 4500 (8-082) - HYDRAULIC CYLINDER WITH FRONT AND REAR PORTS, 3-1/2 ID X 8 INCH STROKE, IH (08) - HYDRAULICS

61105C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

64560C1

HEADED PIN

PIN - cylinder pivot

2шт.

3

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

2шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, self-locking, 7/8 inch NF

1шт.

Part of seal kit P/N 547725R91.

1шт.

5

547724R1

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N 547725R91.

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 547725R91.

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - gland

1шт.

Part of seal kit P/N 547725R91.

1шт.

9

60806C1

HEAD

GLAND - cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD

1шт.

Part of seal kit P/N 547725R91.

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 547725R91.

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 547725R91.

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - piston rod wiper

1шт.

Part of seal kit P/N 547725R91.

1шт.

14

547719R1

ROD

ASSEMBLY - piston

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 547725R91.

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 547725R91.

1шт.

547725R91

SEAL KIT

KIT - seal, Includes: Ref. 4, 6 - 8, 10 - 13, 15 and 16

1шт.
