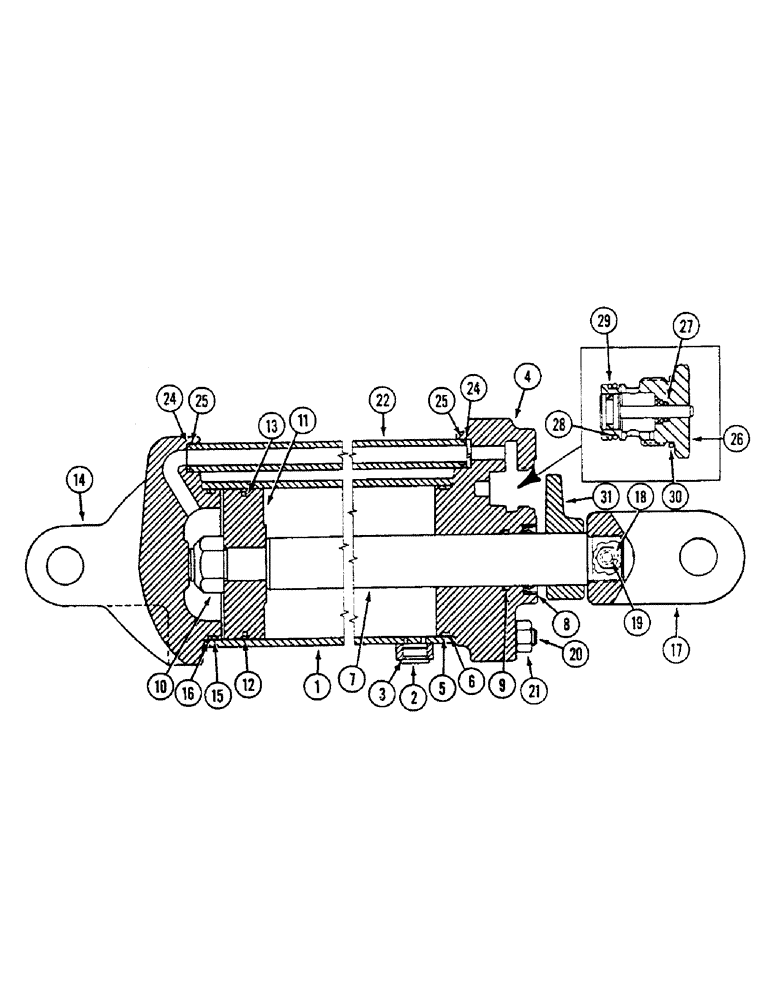

Запчасти Case IH 4500 (8-080) - HYDRAULIC CYLINDER, WITH DUAL FRONT PORTS, 3-1/2 ID X 8 INCH STOKE, IH (08) - HYDRAULICS

149920C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke (No longer available, order 149920C92 cylinder assembly)

1шт.

149920C92

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke (Replaces 149996C91 and 149920C91)

1шт.

1

145424C2

HYD TUBE,3.5" ID, 10.167" Length

TUBE - cylinder

1шт.

2

224582C1

PLUG

- hex socket, 3/4 inch NF

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 84919C2.

1шт.

4

1260880C1

END

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 84919C2.

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 84919C2.

1шт.

7

145500C1

PISTON ROD

ROD - piston

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 84919C2.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL -piston rod

1шт.

Part of seal kit P/N 84919C2.

1шт.

10

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

11

145422C2

PISTON

- cylinder (Use with 149920C91 cylinder assembly)

1шт.

11

85179C1

PISTON

- cylinder (Use with 149920C92 cylinder assembly)

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 84919C2.

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD

1шт.

Part of seal kit P/N 84919C2.

1шт.

14

145354C1

HEAD

- cylinder, closed end

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 84919C2.

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 84919C2.

1шт.

17

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

18

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

145250C1

BOLT,5/8" - 11 x 345mm

- tie, cylinder

4шт.

21

425-1010

NUT,5/8"-11, G5

4шт.

22

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return

1шт.

492-11038

LOCK WASHER,3/8"

not shown 3/8"

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 9/16 ID x 3/4 inch OD

1шт.

Part of seal kit P/N 1272597C91.

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup, return tube O-ring

2шт.

Part of seal kit P/N 1272597C91.

1шт.

1260968C91

VALVE

ASSEMBLY - stop limiting

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE - stop limiting

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - 3/16 ID x 5/16 inch OD

1шт.

Part of seal kit P/N 1272597C91.

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - 11/16 ID x 7/8 inch OD

1шт.

Part of seal kit P/N 1272597C91.

1шт.

29

NSS

NOT SOLD SEPARAT

RING - backup, valve cartridge O-ring

1шт.

Part of seal kit P/N 1272597C91.

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - 3/4 inch OD

1шт.

Part of seal kit P/N 1272597C91.

1шт.

31

224579C3

ARM

STOP - depth, cylinder

1шт.

1263435C91

ADJUSTMENT SCREW

LEVER ASSEMBLY - cylinder adjusting

1шт.

NSS

NOT SOLD SEPARAT

LEVER - cylinder adjusting (Not shown)

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

(Not shown) Jam, 5/16"-18, G5

1шт.

84919C2

GASKET KIT

KIT - seal, Includes: Ref. 3, 5, 6, 8, 9, 12, 13, 15, 16 and (2) wear rings not used on this cylinder

1шт.

1272597C91

KIT

- seal, valve and transfer tube, Includes: Ref. 24, 25, 27 - 30 and (2) backup rings not used on this cylinder

1шт.
