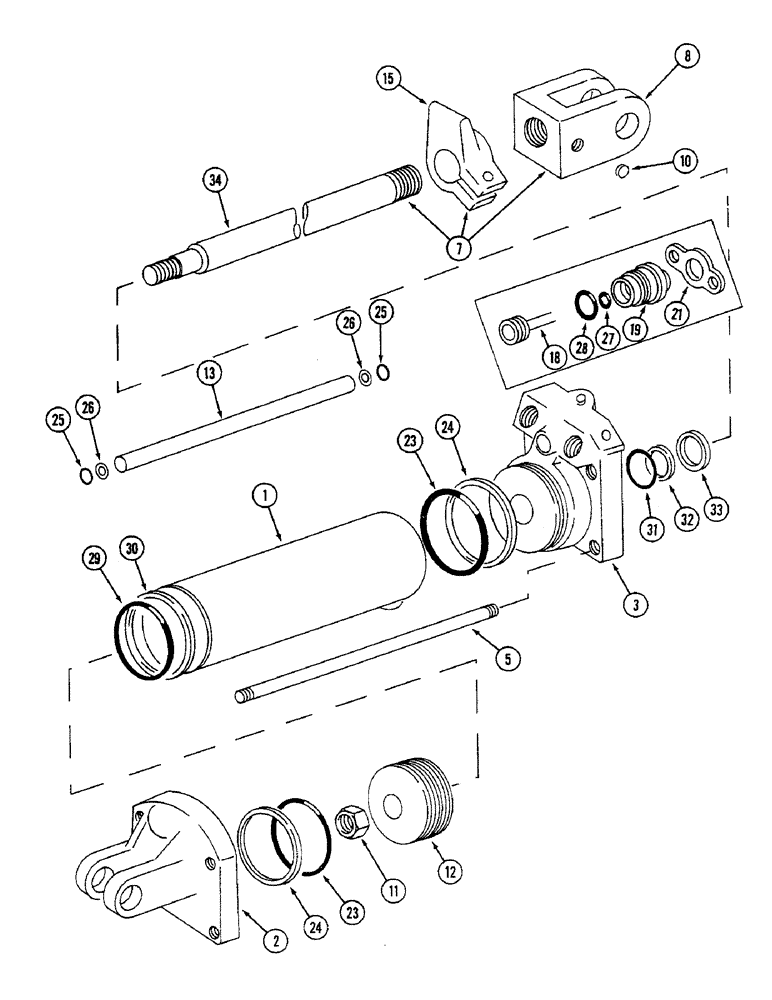

Запчасти Case IH 4500 (8-078) - HYD. CYL., W/ DUAL FRONT PORTS, 3-1/2 ID X 8 IN. STROKE, IH, MODELS BUILT PRIOR TO OCTOBER 1981 (08) - HYDRAULICS

149996C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke (No longer available, order 149920C92 cylinder assembly, page 8-81)

1шт.

1

149999C1

TUBE ASSY.

TUBE - cylinder

1шт.

2

60782C1

HEAD

- cylinder, closed end

1шт.

3

149997C1

GLAND ASSEMBLY - cylinder (No Longer Available)

1шт.

444687

PLUG,Hex Soc, 1/8"-27

(Not shown) Hex Soc, 1/8"-27

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

- tie, cylinder

4шт.

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF (Not shown)

4шт.

7

145501C91

ROD ASSY.

ROD ASSEMBLY - piston

1шт.

8

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Not shown) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert, clevis

1шт.

11

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

12

145422C1

PISTON

- cylinder

1шт.

13

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return

1шт.

492-11038

LOCK WASHER,3/8"

not shown 3/8"

1шт.

15

224579C2

VALVE

STOP - piston rod

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch (Not shown)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Not shown)

1шт.

18

361006R11

VALVE

ASSEMBLY - limit stop

1шт.

19

361007R11

RETAINER

ASSEMBLY - limit stop valve

1шт.

404027R1

RETAINER

- stop valve seal (Not shown)

1шт.

21

361009R1

PLATE

- retaining, valve

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

- hex, 1/4 NC x 9/16 inch (Not shown)

2шт.

23

238-6236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 6, 90 Duro

- 3-1/4 ID x 3-1/2 inch OD

2шт.

24

NSS

NOT SOLD SEPARAT

RING - backup, gland and head O-ring

2шт.

Part of seal kit P/N 224312C1.

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 9/16 ID x 3/4 inch OD

2шт.

Part of seal kit P/N 224312C1.

1шт.

26

NSS

NOT SOLD SEPARAT

RING - backup, return tube O-ring

2шт.

Part of seal kit P/N 224312C1.

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - 3/16 ID x 5/16 inch OD

1шт.

Part of seal kit P/N 224312C1.

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - 5/8 ID x 13/16 inch OD

1шт.

Part of seal kit P/N 224312C1.

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD

1шт.

Part of seal kit P/N 224312C1.

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 224312C1.

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD

1шт.

Part of seal kit P/N 224312C1.

1шт.

32

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 224312C1.

1шт.

33

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 224312C1.

1шт.

34

NSS

NOT SOLD SEPARAT

ROD - piston (Order 145501C91 rod assembly, see Ref. 7)

1шт.

224312C1

SEAL KIT

- seal, Includes: Ref. 24 - 33

1шт.
