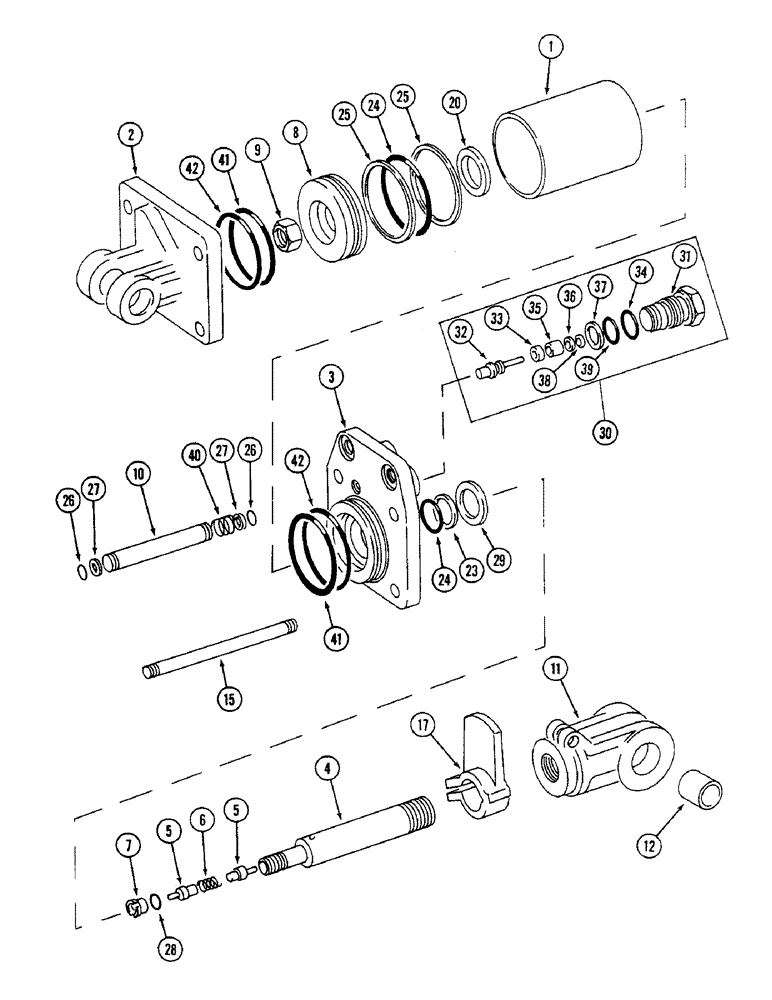

Запчасти Case IH 4500 (8-076) - HYD. CYL., W/ DUAL FRONT PORTS, 3-1/2 ID X 8 IN. STROKE, CROSS, MACHINES BUILT PRIOR TO OCTOBER 1980 (08) - HYDRAULICS

812735C92

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

811892C1

CLEVIS

HEAD - cylinder, closed end

1шт.

3

811893C1

END ASSY.

GLAND - cylinder

1шт.

4

812603C1

ROD

- piston

1шт.

5

812604C1

VALVE

- piston rod poppet

2шт.

6

812628C1

SPRING

- poppet valve

1шт.

7

812629C1

SEAT

- poppet valve

1шт.

8

812640C1

PISTON

- cylinder

1шт.

9

131-914

NUT,1"-14

NUT- hex, 1 inch NF

1шт.

10

812646C1

TUBE,0.39" ID, 0.629" OD

- feed

1шт.

11

813038C91

CLEVIS

ASSEMBLY - piston rod

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHINGS - piston rod clevis

2шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

(Not shown) Hex Soc Hd, 3/8"-16 x 1 1/2"

1шт.

425-106

NUT,3/8"-16, Cl 5

(Not shown) 3/8"-16, G5

1шт.

15

849268R1

ROD

- tie, cylinder

4шт.

425-119

NUT,Hex, 9/16"-18, G5

NF (Not shown) Hex, 9/16"-18, G5

8шт.

17

812649C1

STOP

- piston rod

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Not shown)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Not shown)

1шт.

20

812650C1

COLLAR

- piston stop

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, , Not shown 3/16" x 2", Slotted

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD

1шт.

Part of seal kit P/N 849281R1.

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 849281R1.

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 849281R1.

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N 849281R1.

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - 1/2 ID x 5/8 inch OD

2шт.

Part of seal kit P/N 849281R1.

1шт.

27

NSS

NOT SOLD SEPARAT

RING - backup, feed tube O-ring

2шт.

Part of seal kit P/N 849281R1.

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - 15/32 ID x 5/8 inch OD

2шт.

Part of seal kit P/N 849281R1.

1шт.

29

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 849281R1.

1шт.

30

811097C91

VALVE

ASSEMBLY - stroke control poppet

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - poppet valve cartridge

1шт.

32

NSS

NOT SOLD SEPARAT

PLUNGER - poppet valve

1шт.

33

NSS

NOT SOLD SEPARAT

CUP - poppet valve

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - poppet valve

1шт.

36

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

31

NSS

NOT SOLD SEPARAT

RING - backup, poppet valve housing O-ring

1шт.

32

NSS

NOT SOLD SEPARAT

RING - backup, poppet bushing O-ring

1шт.

39

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

40

849259R1

SPRING

- feed tube

1шт.

41

NSS

NOT SOLD SEPARAT

O-RING - 3/14 ID x 3-1/2 inch OD

2шт.

Part of seal kit P/N 849281R1.

1шт.

42

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

2шт.

Part of seal kit P/N 849281R1.

1шт.

849281R1

SEAL KIT

- seal, Includes: Ref. 22 - 29, 41 and 42

1шт.
