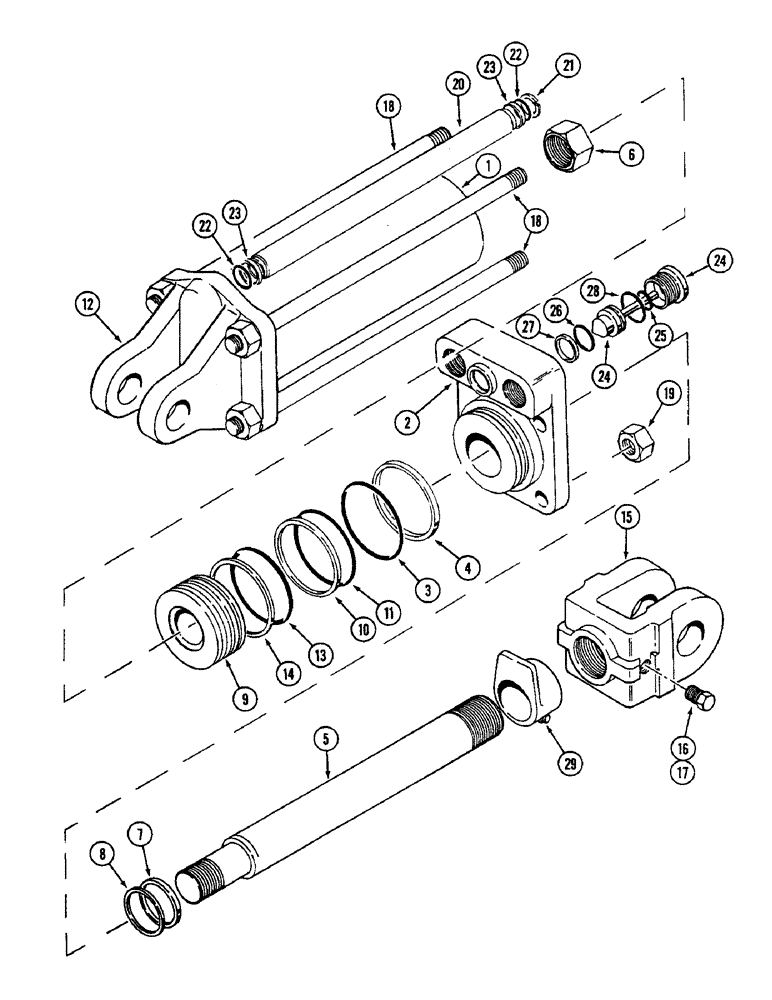

Запчасти Case IH 4500 (8-074) - HYDRAULIC CYLINDER, WITH DUAL FRONT PORTS, 3-1/2 ID X 8 INCH STROKE, VICTOR (08) - HYDRAULICS

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke (Replaces 371292R95, 145352C91 and 403842R94 cylinder assembly)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1255096C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 79978C2.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 79978C2.

1шт.

1272813C1

ROD

ASSEMBLY - piston

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

6

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 79978C2.

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 79978C2.

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 79978C2.

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD

1шт.

Part of seal kit P/N 79978C2.

1шт.

12

145354C1

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 79978C2.

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 79978C2.

1шт.

15

1282366C1

RAM FORK

CLEVIS - piston rod

1шт.

16

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

17

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

18

145250C1

BOLT,5/8" - 11 x 345mm

- tie, cylinder

4шт.

19

425-1010

NUT,5/8"-11, G5

hex, self-locking 5/8"-11, G5

4шт.

20

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 9/16 ID x 3/4 inch OD

2шт.

Part of seal kit P/N 1272597C91.

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, return tube O-ring

2шт.

Part of seal kit P/N 1272597C91.

1шт.

1260968C91

VALVE

ASSEMBLY - stop limiting

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - stop limiting

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 3/16 ID x 5/16 inch OD

1шт.

Part of seal kit P/N 1272597C91.

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - 11/16 ID x 7/8 inch OD

1шт.

Part of seal kit P/N 1272597C91.

1шт.

27

NSS

NOT SOLD SEPARAT

RING - backup, valve O-ring

1шт.

Part of seal kit P/N 1272597C91.

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - 3/4 inch ID

1шт.

Part of seal kit P/N 1272597C91.

1шт.

29

224581C3

ARM

STOP - depth, cylinder

1шт.

1263435C91

ADJUSTMENT SCREW

LEVER ASSEMBLY - cylinder adjusting

1шт.

NSS

NOT SOLD SEPARAT

LEVER - cylinder adjusting (Not shown)

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

(Not shown) Jam, 5/16"-18, G5

1шт.

79978C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 7, 8, 10, 11, 13, 14 and (2) wear rings not used on this cylinder

1шт.

1272597C91

KIT

- seal, valve and transfer tube, Includes: Ref. 22, 23, 25 - 28 and (2) washers not used on this cylinder

1шт.
