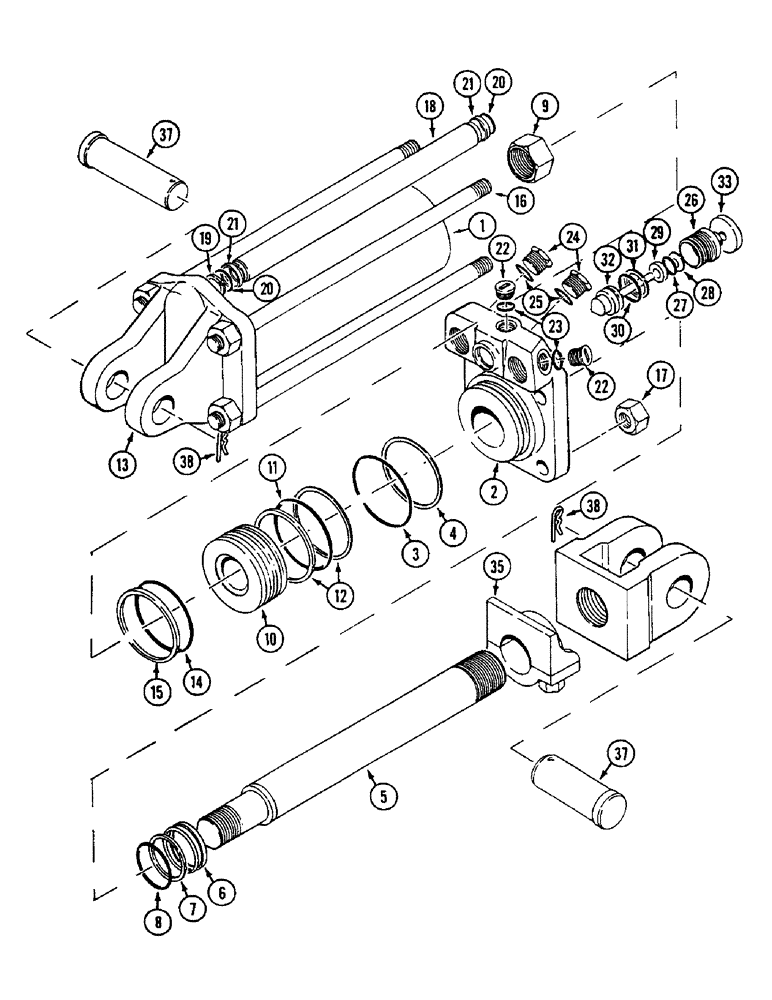

Запчасти Case IH 4500 (8-072) - HYDRAULIC CYLINDER, WITH DUAL FRONT PORTS, 3-1/2 ID X 8 INCH STROKE, IH (08) - HYDRAULICS

403842R94

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke (No longer available, order 1263474C91 cylinder assembly, page 8-75)

1шт.

1

404021R1

TUBE - cylinder

1шт.

2

404014R2

GLAND - cylinder (Replaces 367615R11 gland and 444788 plug)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 527324R92.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 527324R92.

1шт.

5

547661R1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod (Replaces seal and seal retainer)

1шт.

Part of seal kit P/N 527324R92.

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod (Replaces quad ring and backup ring)

1шт.

Part of seal kit P/N 527324R92.

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1 ID x 1-1/4 inch OD

1шт.

Part of seal kit P/N 527324R92.

1шт.

9

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex, self-locking, 1-1/8 inch NF, Grade 8

1шт.

10

404019R1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 527324R92.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N 527324R92.

1шт.

13

547662R1

HEAD

- cylinder, closed end

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal kit P/N 527324R92.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 527324R92.

1шт.

16

404022R1

ROD,5/8" - 11 x 14"

BOLT - tie, cylinder

4шт.

17

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NF, Grade 8

4шт.

18

404023R1

TUBE

- return (Replaces 354834R2)

1шт.

19

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 9/16 ID x 3/4 inch OD

2шт.

Part of seal kit P/N 527324R92.

1шт.

21

NSS

NOT SOLD SEPARAT

RING - backup, return tube O-ring

2шт.

Part of seal kit P/N 527324R92.

1шт.

22

404033R1

PLUG

- slotted, gland

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - plug

2шт.

Part of seal kit P/N 527324R92.

1шт.

24

86512512

PLUG,7/8" - 14 ORB

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

Part of seal kit P/N 527324R92.

1шт.

26

404024R91

HOUSING

ASSEMBLY - stop limiting valve

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - valve stem

1шт.

Part of seal kit P/N 527324R92.

1шт.

28

NSS

NOT SOLD SEPARAT

RING - backup, valve stem O-ring

1шт.

Part of seal kit P/N 527324R92.

1шт.

29

404027R1

RETAINER

- stop limiting valve

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

Part of seal kit P/N 527324R92.

1шт.

31

NSS

NOT SOLD SEPARAT

RING - backup, housing O-ring

1шт.

Part of seal kit P/N 527324R92.

1шт.

32

404029R1

LOCK VALVE

VALVE - stop limiting

1шт.

33

361009R1

PLATE

- retaining, stop limiting valve

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

- hex, 1/4 NC x 9/16 inch (Not shown)

2шт.

35

404034R1

CLAMP

COLLAR - stroke limiting

1шт.

36

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

(Not shown) Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

37

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, cylinder

2шт.

38

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

2шт.

527324R92

KIT

- seal, Includes: Ref. 3, 4, 6 - 8, 11, 12, 14, 15, 20, 21, 23, 25, 27, 28, 30, 31 and (1) seal retainer not used in this cylinder

1шт.
