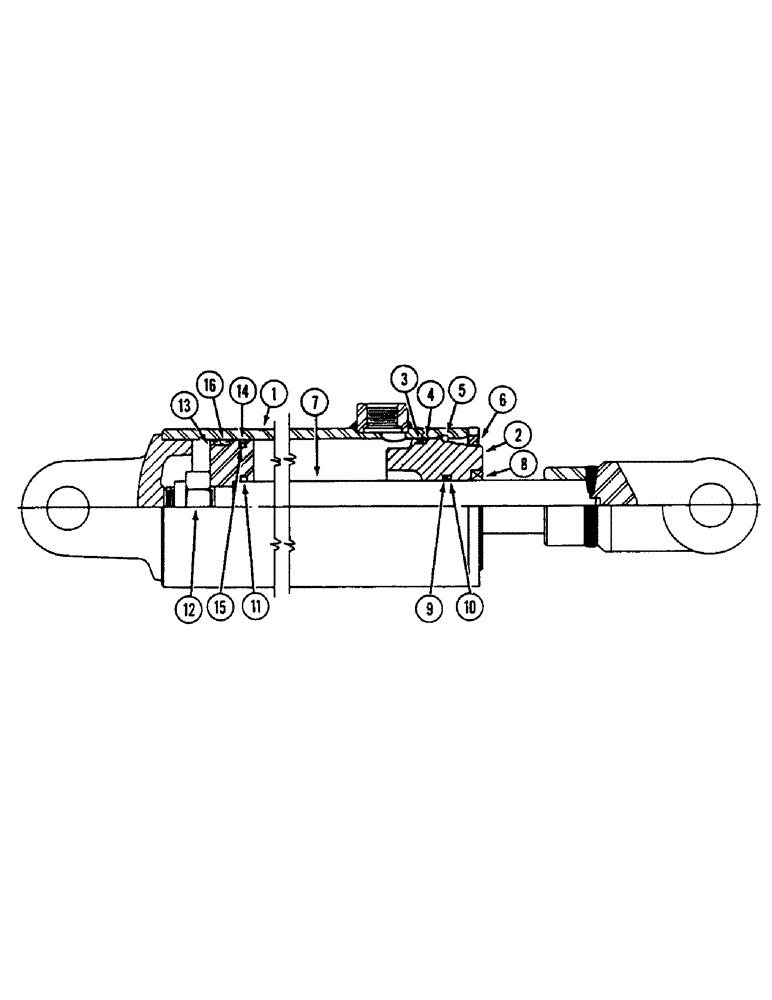

Запчасти Case IH 4500 (8-064) - HYDRAULIC CYLINDER, WITH FRONT AND REAR PORTS, 3-1/4 ID X 8 INCH STROKE, CESSNA (08) - HYDRAULICS

812367C91

CYLINDER

ASSEMBLY - 3-1/4 ID x 8 inch stroke

1шт.

87423770R

REMAN-HYD CYLINDER

4500 CASE IH VIBRA SHANK CULTIVATOR, Reman for New P/N 812367C91

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

812656C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-1/4 inch OD, gland

1шт.

Part of seal kit P/N 812723C1.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 812723C1.

1шт.

5

812722C1

RING

- retaining, gland

1шт.

6

812657C1

NUT

CAP - gland retaining

1шт.

7

812658C1

ROD

- piston

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 812723C1.

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD

1шт.

Part of seal kit P/N 812723C1.

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 812723C1.

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD

1шт.

Part of seal kit P/N 812723C1.

1шт.

12

691547R1

NUT

- hex, self-locking, 1 inch NF

1шт.

13

812667C1

PISTON

- cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 812723C1.

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal

1шт.

Part of seal kit P/N 812723C1.

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of seal kit P/N 812723C1.

1шт.

812723C1

SEAL KIT

- seal, Includes: Ref. 3, 4, 8 - 11 and 14 - 16

1шт.
