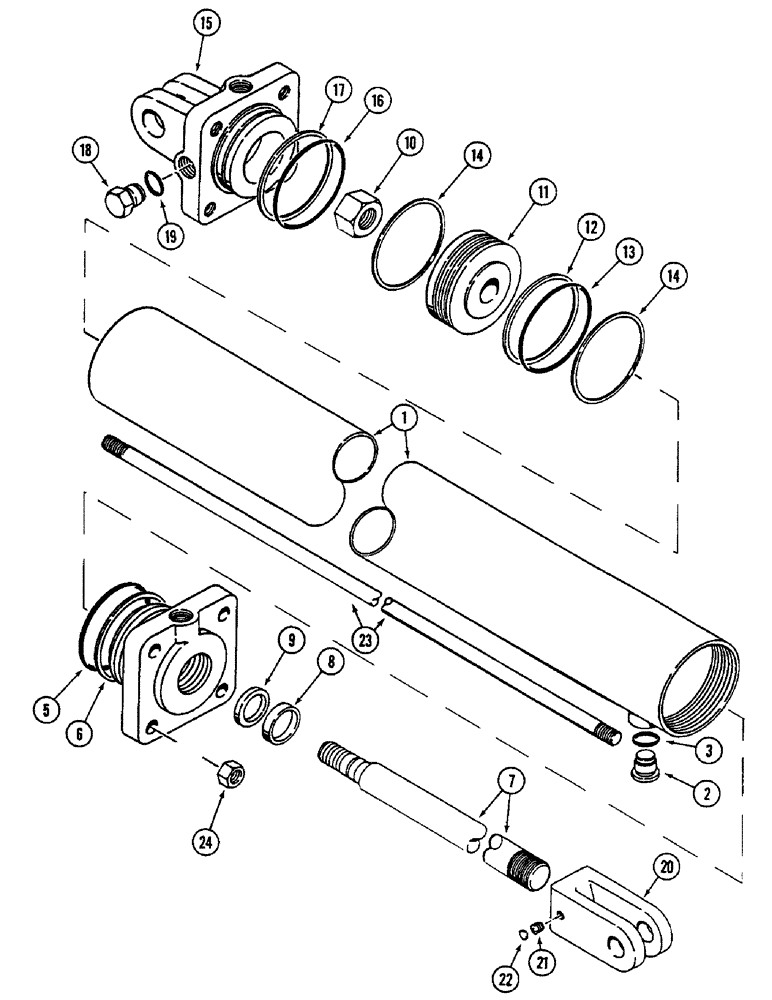

Запчасти Case IH 4500 (8-062) - HYDRAULIC CYLINDER, WITH DUAL FRONT PORTS, 3-1/4 ID X 8 INCH STROKE, IH (08) - HYDRAULICS

1282322C92

CYLINDER

ASSEMBLY - 3-1/4 ID x 8 inch stroke (Replaces 149919C93 and 810311C91 cylinder assembly)

1шт.

87423770R

REMAN-HYD CYLINDER

4500 CASE IH VIBRA SHANK CULTIVATOR, Reman for New P/N 1282322C92

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

1978384C1

HYD TUBE

TUBE - cylinder

1шт.

2

224582C1

PLUG

- phasing

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD, plug

1шт.

Part of seal kit P/N 80116C2.

1шт.

4

1286313C1

HEAD

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-1/4 inch OD

1шт.

Part of seal kit P/N 80116C2.

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 80116C2.

1шт.

7

145231C1

PISTON ROD

ROD - piston

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 80116C2.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 80116C2.

1шт.

10

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

11

92519C1

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 80116C2.

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 2-3/4 ID x 2-15/16 inch OD

1шт.

Part of seal kit P/N 80116C2.

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of seal kit P/N 80116C2.

1шт.

15

1286314C1

HEAD

- cylinder, closed end

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-1/4 inch OD

1шт.

Part of seal kit P/N 80116C2.

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 80116C2.

1шт.

18

9410359

PLUG

- hex, 3/4 inch NF

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD, plug

1шт.

Part of seal kit P/N 80116C2.

1шт.

20

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

21

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

22

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

23

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80116C2

GASKET KIT

KIT - seal, Includes: Ref. 3, 5, 6, 8, 9, 12 - 14, 16, 17 and 19

1шт.
