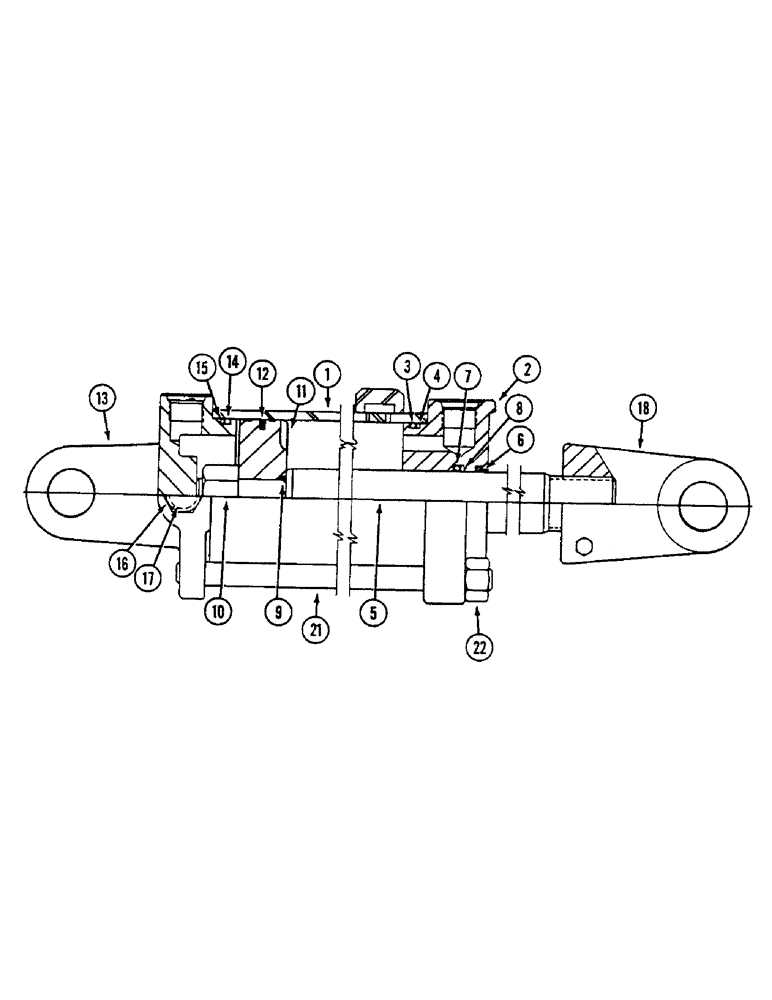

Запчасти Case IH 4500 (8-060) - HYDRAULIC CYLINDER, WITH DUAL FRONT PORTS, 3-1/4 ID X 8 INCH STROKE, PRINCE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
810311C91
CYLINDER
ASSEMBLY - 3-1/4 ID x 8 inch stroke (No longer available, order 1282322C92 cylinder assembly, page 8-63)
1шт.
87423770R
REMAN-HYD CYLINDER
4500 CASE IH VIBRA SHANK CULTIVATOR, Reman for New P/N 810311C91
1шт.
87423770C
CORE-HYD CYLINDER
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
2
813497C1
END
GLAND - cylinder
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - 2-7/8 ID x 3-1/4 inch OD
1шт.
Part of seal kit P/N 813080C91.
1шт.
4
NSS
NOT SOLD SEPARAT
RING - backup, gland O-ring
1шт.
Part of seal kit P/N 813080C91.
1шт.
5
131673C1
ROD
- piston
1шт.
6
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of seal kit P/N 813080C91.
1шт.
7
NSS
NOT SOLD SEPARAT
O-RING - 1-1/4 ID x 1-1/2 inch OD
1шт.
Part of seal kit P/N 813080C91.
1шт.
8
NSS
NOT SOLD SEPARAT
RING - backup, piston rod O-ring
1шт.
Part of seal kit P/N 813080C91.
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - 3/4 ID x 7/8 inch OD
1шт.
Part of seal kit P/N 813080C91.
1шт.
10
131-1251
LOCK NUT,3/4"-16, GC
NUT, LOCK, 3/4"-16, GC
1шт.
11
813533C1
PISTON
- cylinder
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
Part of seal kit P/N 813080C91.
1шт.
13
813491C1
END
HEAD - cylinder, closed end
1шт.
14
NSS
NOT SOLD SEPARAT
O-RING - 2-7/8 ID x 3-1/4 inch OD
1шт.
Part of seal kit P/N 813080C91.
1шт.
15
NSS
NOT SOLD SEPARAT
RING - backup, cylinder head O-ring
1шт.
Part of seal kit P/N 813080C91.
1шт.
16
9410359
PLUG
- hex, 3/4 inch NF
1шт.
17
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
18
813397C91
CLEVIS
- piston rod
1шт.
113-110
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Hex, 5/16"-18 x 2 1/4", G5, Not shown
1шт.
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC (Not shown)
1шт.
21
131678C1
TIE-ROD,1/2" - 13 x 12 1/8"
BOLT - tie, cylinder
4шт.
22
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
813080C91
SEAL KIT
- seal, Includes: Ref. 3, 4, 6 - 9, 12, 14 and 15
1шт.
