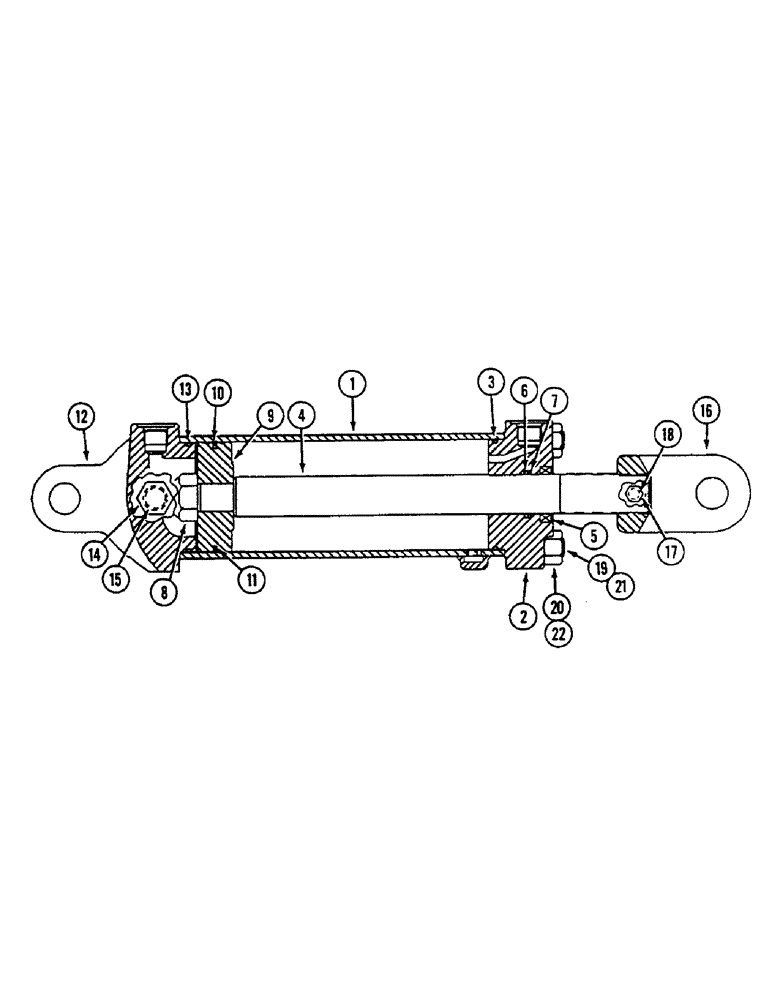

Запчасти Case IH 4500 (8-058) - HYDRAULIC CYLINDER, WITH DUAL FRONT PORTS, 3-1/4 ID X 8 INCH STROKE, IH (08) - HYDRAULICS

149919C93

CYLINDER

ASSEMBLY - 3-1/4 ID x 8 inch stroke (No longer available, order 1282322C92 cylinder assembly, page 8-63)

1шт.

87423770R

REMAN-HYD CYLINDER

4500 CASE IH VIBRA SHANK CULTIVATOR, Reman for New P/N 149919C93

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

149923C1

HEAD

GLAND - cylinder (Replaces 1260878C1)

1шт.

2

1260878C1

HEAD

GLAND - cylinder (Replaces 149923C1)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-1/4 inch OD

1шт.

4

145231C1

PISTON ROD

ROD - piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod (Use with 1260878C1 gland, Ref 2)

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD (Use with 149923C1 gland, Ref 2)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, gland o-ring (Use with 149923C1 gland, Ref 2)

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

9

149924C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 2-3/4 ID x 2-15/16 inch OD

1шт.

12

149922C1

HEAD

- cylinder, closed end (Replaces 1255172C1 head by also ordering (4) 142461C1 tie bolts and (4) 425-1010 nuts, Ref 19 and 20)

1шт.

12

1255172C1

END

HEAD - cylinder, closed end (Replaces 149922C1 by also ordering (4) 142461C1 tie bolts and (4) 425-1010 nuts, Ref 19 and 20)

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-1/4 inch OD

1шт.

14

9410359

PLUG

- hex, 3/4 inch NF o-ring boss

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD, plug

1шт.

16

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

17

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

18

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

19

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder (Use with 1255172C1 cylinder head)

4шт.

20

425-1010

NUT,5/8"-11, G5

(Use with 142461C1 tie bolt) 5/8"-11, G5

4шт.

21

1252017C1

BOLT - tie, cylinder (Use with 149922C1 cylinder head)

4шт.

22

425-1110

NUT,5/8"-18, G5

(Use with 1252017C1 tie rod) 5/8"-18, G5

4шт.

80116C2

GASKET KIT

KIT - seal, use with 1260878C1 gland, includes Ref 3, 5, 6 (seal), 10, 11, 13 and 15

1шт.

1272597C91

KIT

- seal, use with 149923C1 gland, includes Ref 3, 5, 6 (o-ring), 7, 10, 11, 13 and 15

1шт.
