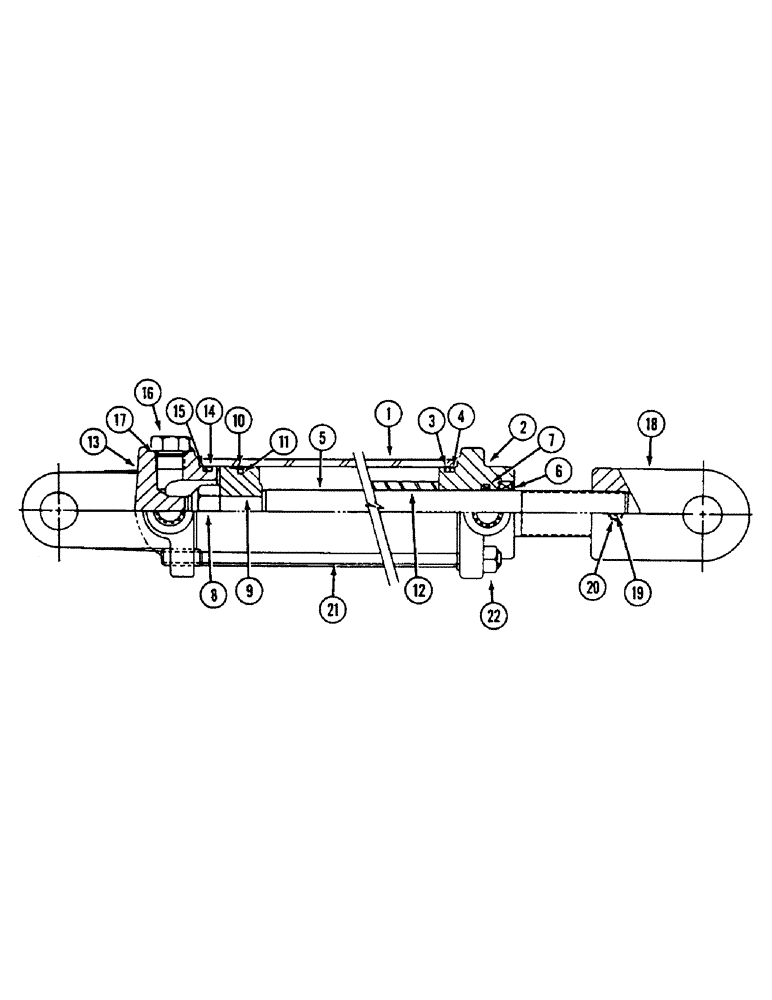

Запчасти Case IH 4500 (8-054) - HYDRAULIC CYLINDER, WITH FRONT AND REAR PORTS, 3 ID X 48 INCH STROKE, IH (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1285958C91
CYLINDER ASSY.
CYLINDER ASSEMBLY - 3 ID x 48 inch stroke (Replaces 811677C91 and 813238C91 cylinder assembly)
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
2
1272762C1
HEAD
GLAND - cylinder
1шт.
3
238-6232
O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro
1шт.
Part of seal kit P/N 79976C2.
1шт.
4
NSS
NOT SOLD SEPARAT
RING - backup, gland O-ring
1шт.
Part of seal kit P/N 79976C2.
1шт.
5
145543C1
ROD
- piston
1шт.
6
D95141
WIPER SEAL
WIPER - piston rod
1шт.
Part of seal kit P/N 79976C2.
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL - piston rod
1шт.
Part of seal kit P/N 79976C2.
1шт.
8
20268R1
LOCK NUT,7/8"-14, GC
NUT - hex, self-locking, 7/8 inch NF, Grade 8
1шт.
9
145225C2
PISTON
- cylinder
1шт.
10
387373R1
RING
SEAL - piston
1шт.
Part of seal kit P/N 79976C2.
1шт.
11
238-5145
O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro
1шт.
Part of seal kit P/N 79976C2.
1шт.
12
1252065C1
SPACER
- cylinder
1шт.
13
1272761C1
HEAD
- cylinder, closed end (Replaces 145222C1)
1шт.
14
238-6232
O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro
1шт.
Part of seal kit P/N 79976C2.
1шт.
15
NSS
NOT SOLD SEPARAT
RING - backup, cylinder head O-ring
1шт.
Part of seal kit P/N 79976C2.
1шт.
16
9410359
PLUG
- hex, 3/4 inch NF O-ring boss
1шт.
17
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
Part of seal kit P/N 79976C2.
1шт.
18
145233C1
CLEVIS,1/4" - 12
- rod
1шт.
19
483-1386
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt
1шт.
20
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert
1шт.
21
149994C1
BOLT,7/16" - 14 x 1447mm
- tie, cylinder
4шт.
22
425-107
NUT,7/16"-14, G5
- hex, 7/16 inch NC
4шт.
79976C2
SEAL KIT
KIT - seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 14, 15 and 17
1шт.
Выбрано товаров: 33
