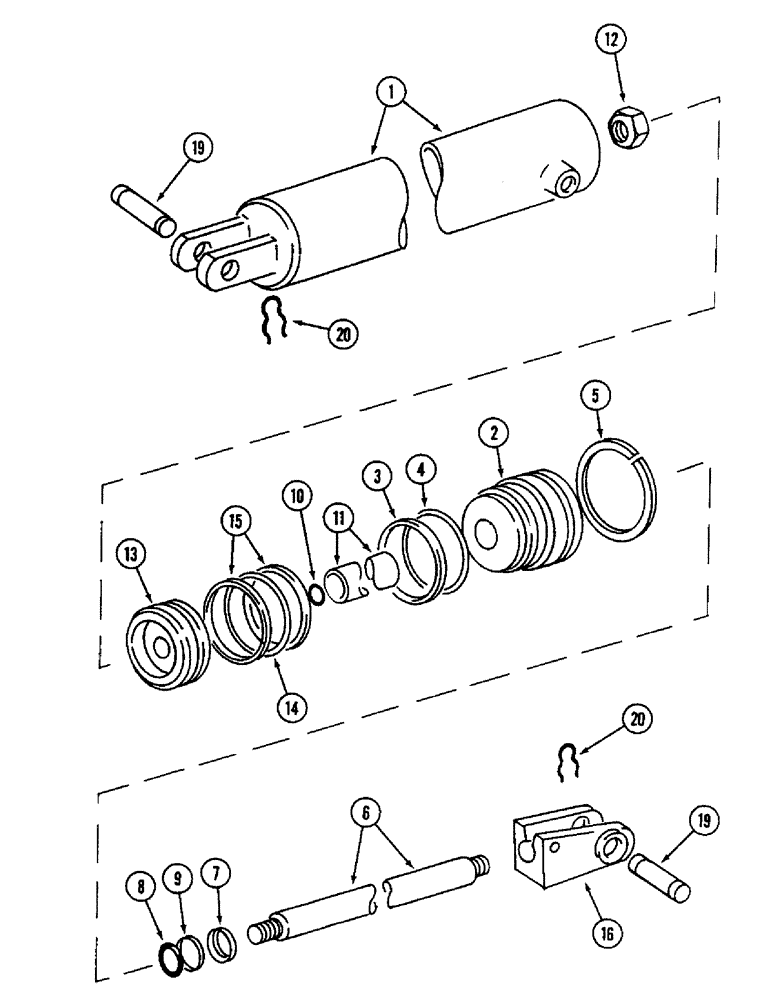

Запчасти Case IH 4500 (8-052) - HYDRAULIC CYLINDER, WITH FRONT AND REAR PORTS, 3 ID X 48 INCH STROKE, PRINCE (08) - HYDRAULICS

813238C91

CYLINDER

ASSEMBLY - 3 ID x 48 inch stroke (No longer available, order 1285958C91 cylinder assembly, page 8-55)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

813216C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3/16 inch

1шт.

Part of seal kit P/N 813454C91.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 813454C91.

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

Part of seal kit P/N 813454C91.

1шт.

6

813234C1

ROD

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 813454C91.

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1/8 inch

1шт.

Part of seal kit P/N 813454C91.

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, pison rod O-ring

1шт.

Part of seal kit P/N 813454C91.

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1 ID x 1/16 inch

1шт.

Part of seal kit P/N 813454C91.

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - piston rod

1шт.

12

359798C1

LOCK NUT,1"-14, GC

NUT - hex, self-locking, 1-1/2 inch NF

1шт.

13

813369C1

PISTON

- cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3/16 inch

1шт.

Part of seal kit P/N 813454C91.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N 813454C91.

1шт.

813397C91

CLEVIS

ASSEMBLY - cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

CLEVIS - rod end

1шт.

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, Not shown

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Not shown)

1шт.

19

813456C1

PIN

- clevis

2шт.

20

813464C1

PIN

- retaining, clevis pin

4шт.

813454C91

SEAL KIT

- seal, Includes: Ref. 3 - 5, 7 - 10, 14 and 15

1шт.
