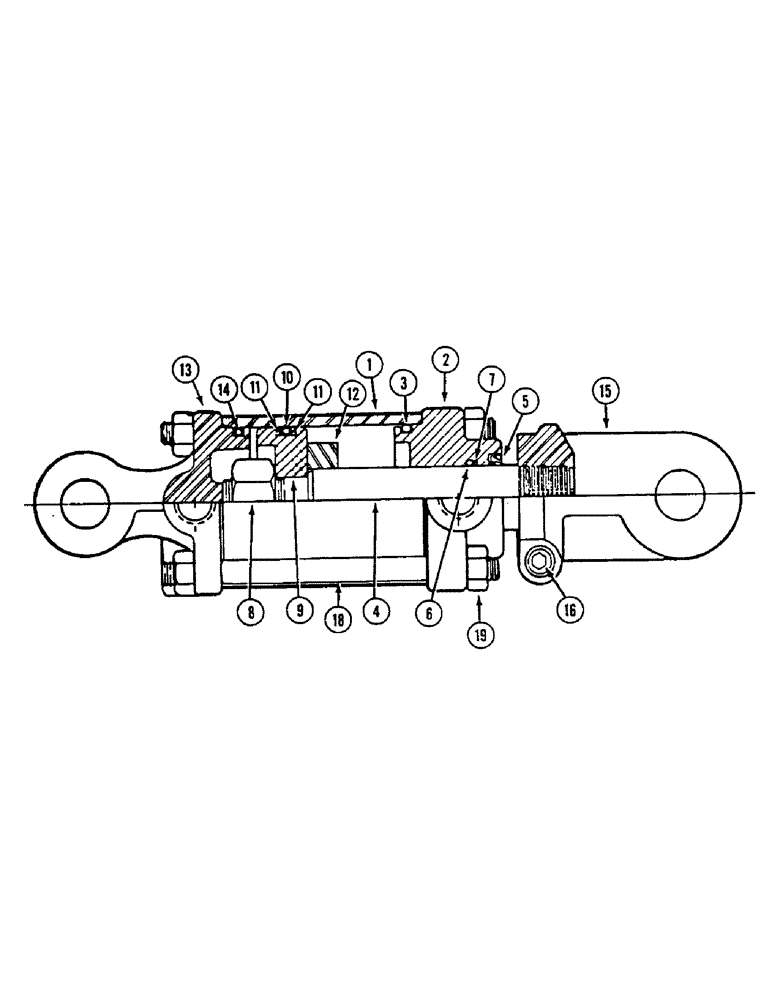

Запчасти Case IH 4500 (8-050) - HYD. CYL., W/ FRONT & REAR PORTS, 3 ID X 48 INCH STROKE, CROSS, MACHINES BUILT PRIOR TO MARCH 1981 (08) - HYDRAULICS

811677C91

CYLINDER

ASSEMBLY - 3 ID x 48 inch stroke (No longer available, order 1285958C91 cylinder assembly, page 8-55)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

812166C2

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N B17231.

1шт.

4

812265C1

ROD

- piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N B17231.

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N B17231.

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, pison rod O-ring

1шт.

Part of seal kit P/N B17231.

1шт.

8

131-690

LOCK NUT,3/4"-16, GB

NUT - hex, 3/4 inch NF

1шт.

9

812169C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit P/N B17231.

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N B17231.

1шт.

12

812268C1

SPACER

- piston

1шт.

13

812165C2

CLEVIS

HEAD - cylinder, closed end

1шт.

14

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

Cylinder head -232, 90 Duro, 2.734" ID x .139" Thk

1шт.

Part of seal kit P/N B17231.

1шт.

15

812266C1

CLEVIS

- rod

1шт.

16

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex socket head, 3/8 NC x 1-1/2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

(Not shown) 3/8"-16, G5

1шт.

18

812267C1

ROD

- tie, cylinder

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

B17284

CLEVIS PIN

PIN - clevis (Not shown)

2шт.

591107R1

COTTER PIN

- cotter, hair type (Not shown)

2шт.

B17231

KIT

- seal, Includes: Ref. 3, 5 - 7, 10, 11 and 14

1шт.
