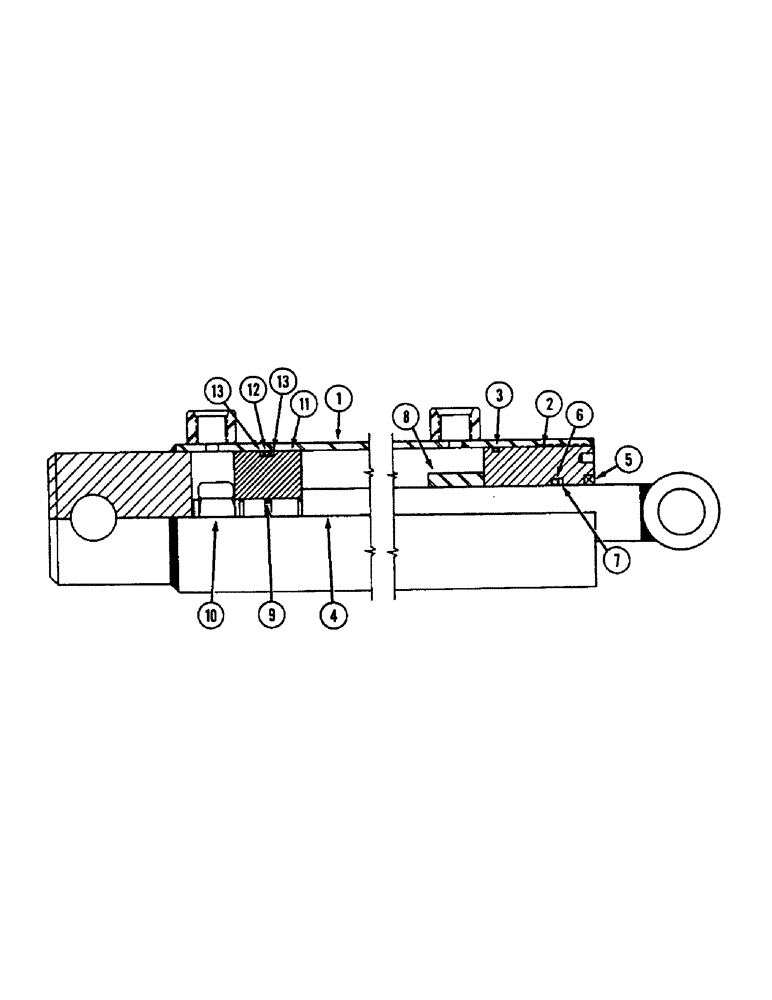

Запчасти Case IH 4500 (8-048) - HYDRAULIC CYLINDER, WITH FRONT AND REAR PORTS, 3 ID X 34 INCH STROKE, PNEU HYDRAULICS (08) - HYDRAULICS

813245C91

CYLINDER

ASSEMBLY - 3 ID x 34 inch stroke (Replaces 813243C91 and 813244C91 cylinder assembly)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

811664C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2-3/4 ID x 3 inch OD

1шт.

Part of seal kit P/N 811821C91.

1шт.

4

811672C1

ROD

- piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 811821C91.

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 811821C91.

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup , piston rod O-ring

1шт.

Part of seal kit P/N 811821C91.

1шт.

8

811815C1

SPACER

- piston rod stop

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 7/8 ID x 1 inch OD

1шт.

Part of seal kit P/N 811821C91.

1шт.

10

359798C1

LOCK NUT,1"-14, GC

NUT - hex, self-locking, 7/8 inch NF

1шт.

11

811820C1

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3 inch OD

1шт.

Part of seal kit P/N 811821C91.

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N 811821C91.

1шт.

811821C91

SEAL KIT

- seal, Includes: Ref. 3, 5 - 7, 9, 12 and 13

1шт.
