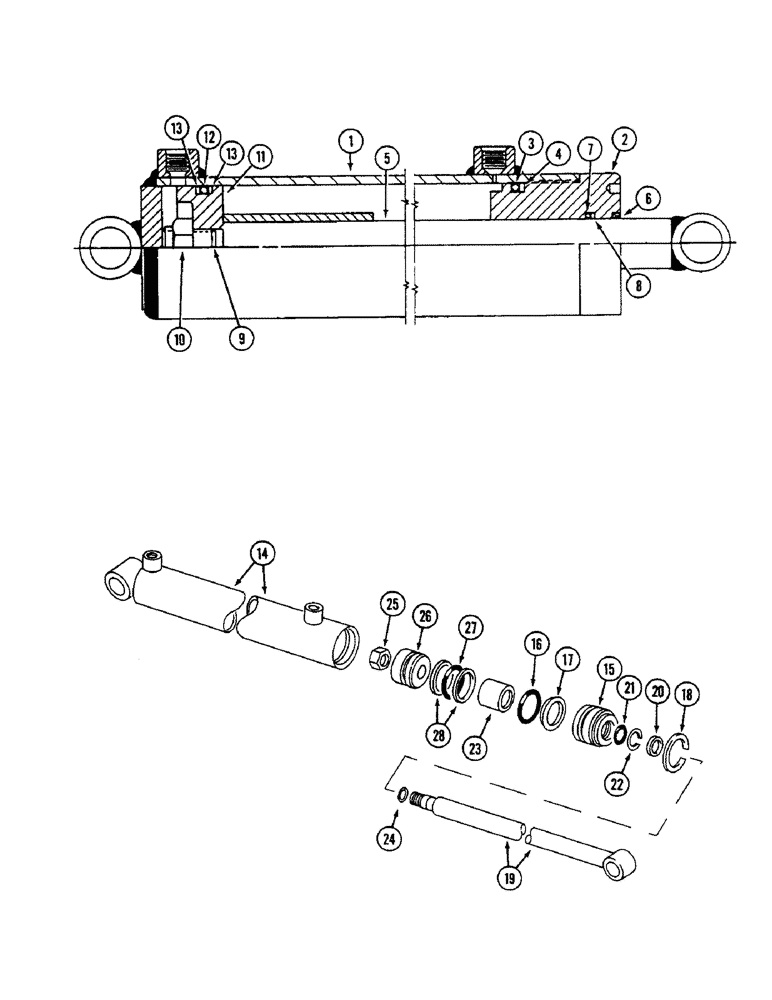

Запчасти Case IH 4500 (8-046) - HYDRAULIC CYLINDER, WITH FRONT AND REAR PORTS, 3 ID X 34 INCH STROKE, ALCO, PRINCE (08) - HYDRAULICS

813243C91

CYLINDER

ASSEMBLY - 3 ID x 34 inch stroke (No longer available, order 813245C91 cylinder assembly, page 8-49)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

810073C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3 inch OD

1шт.

Part of seal kit P/N 810107C91.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 810107C91.

1шт.

5

810075C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 810107C91.

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD

1шт.

Part of seal kit P/N 810107C91.

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup , piston rod O-ring

1шт.

Part of seal kit P/N 810107C91.

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 3/4 ID x 7/8 inch OD

1шт.

Part of seal kit P/N 810107C91.

1шт.

10

811850C1

NUT

- hex, self-locking, 7/8 inch NF

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3 inch OD

1шт.

Part of seal kit P/N 810107C91.

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N 810107C91.

1шт.

810107C91

SEAL KIT

- seal, Includes: Ref. 3, 4, 6 - 9, 12 and 13

1шт.

813244C91

CYLINDER

ASSEMBLY - 3 ID x 34 inch stroke (No longer available, order 813245C91 cylinder assembly, page 8-49), prince

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - cylinder, prince

1шт.

15

813216C1

END

GLAND - cylinder, prince

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3 inch OD, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

18

NSS

NOT SOLD SEPARAT

RING - retaining, gland, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

19

813256C1

ROD

- piston, prince

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER - piston rod, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup , piston rod O-ring, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER - piston rod, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1 ID x 1-1/8 inch OD, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

25

359798C1

LOCK NUT,1"-14, GC

NUT - hex, self-locking, 1-1/2 inch NF, prince

1шт.

26

813369C1

PISTON

- cylinder, prince

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3 inch OD, prince

1шт.

Part of seal kit P/N 813442C91.

1шт.

28

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring, prince

2шт.

Part of seal kit P/N 813442C91.

1шт.

813442C91

SEAL KIT

- seal, Includes: Ref. 16 - 18, 20 - 24, 27 and 28, prince

1шт.
