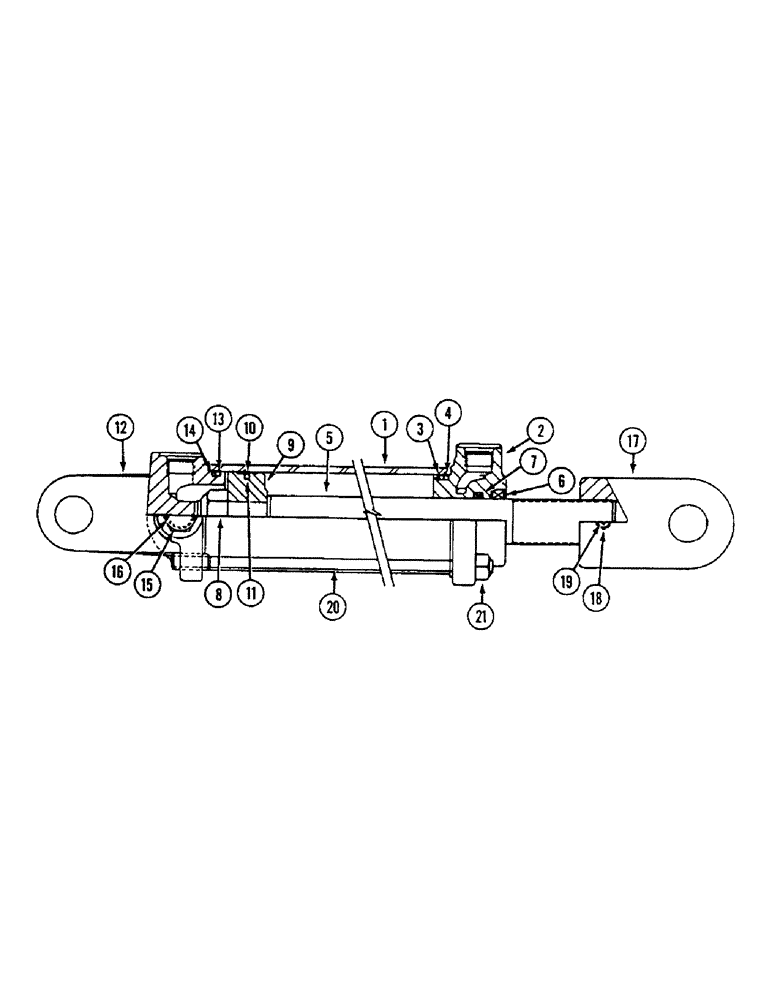

Запчасти Case IH 4500 (8-044) - HYDRAULIC CYLINDER, WITH FRONT AND REAR PORTS, 3 ID X 8 INCH STROKE, IH (08) - HYDRAULICS

1272146C91

CYLINDER

ASSEMBLY - 3 ID x 8 inch stroke (Replaces 381854R94, 145210C92 and 844097C92 cylinder assembly)

1шт.

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272762C1

HEAD

GLAND - cylinder

1шт.

3

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 79976C2.

1шт.

5

145543C1

ROD

- piston

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N 79976C2.

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 79976C2.

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self- locking, 7/8 inch NF, Grade 8

1шт.

9

145225C2

PISTON

- cylinder

1шт.

10

387373R1

RING

SEAL - piston

1шт.

Part of seal kit P/N 79976C2.

1шт.

11

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

12

1272761C1

HEAD

- cylinder, closed end

1шт.

13

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 79976C2.

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch NC O-ring boss

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 79976C2.

1шт.

17

145211C1

CLEVIS - rod end

1шт.

18

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

BOLT - tie, cylinder

4шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

79976C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 13, 14 and 16

1шт.
