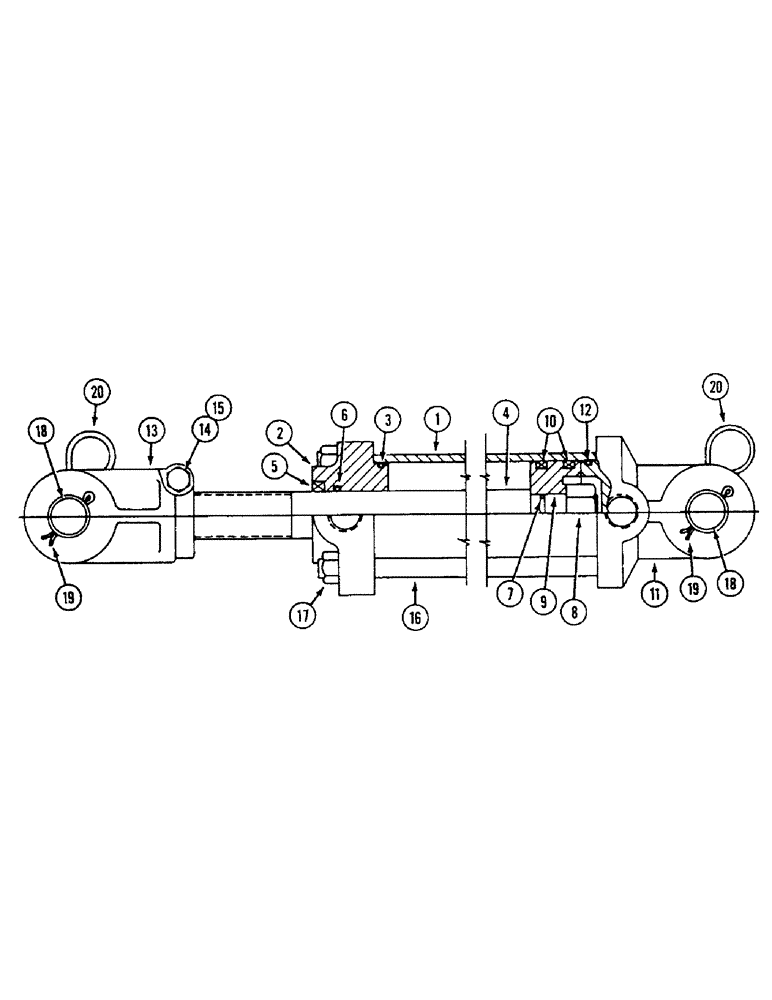

Запчасти Case IH 4500 (8-042) - HYDRAULIC CYLINDER, WITH FRONT AND REAR PORTS, 3 ID X 8 INCH STROKE, MONARCH (08) - HYDRAULICS

844097C92

CYLINDER

ASSEMBLY - 3 ID x 8 inch stroke (No longer available, order 1272146C91 cylinder assembly, page 8-45)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

844119C1

CAP

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 844121C1.

1шт.

4

844036C1

ROD

- piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 844121C1.

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 844121C1.

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston rod, nut end

1шт.

Part of seal kit P/N 844121C1.

1шт.

8

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

1шт.

9

813134C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

PACKING - piston

2шт.

Part of seal kit P/N 844121C1.

1шт.

11

844118C1

CAP

HEAD - cylnder, closed end

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit P/N 844121C1.

1шт.

13

844032C1

CLEVIS

- rod end

1шт.

14

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

844038C1

ROD

BOLT - tie, cylinder

4шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18

844035C1

PIN

- clevis and head

2шт.

19

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

20

486830R1

COTTER PIN

PIN - cotter, hair type, 3/16 inch diameter

2шт.

844121C1

SEAL KIT

- seal, Includes: Ref. 3, 5 - 7, 10 and 12

1шт.
