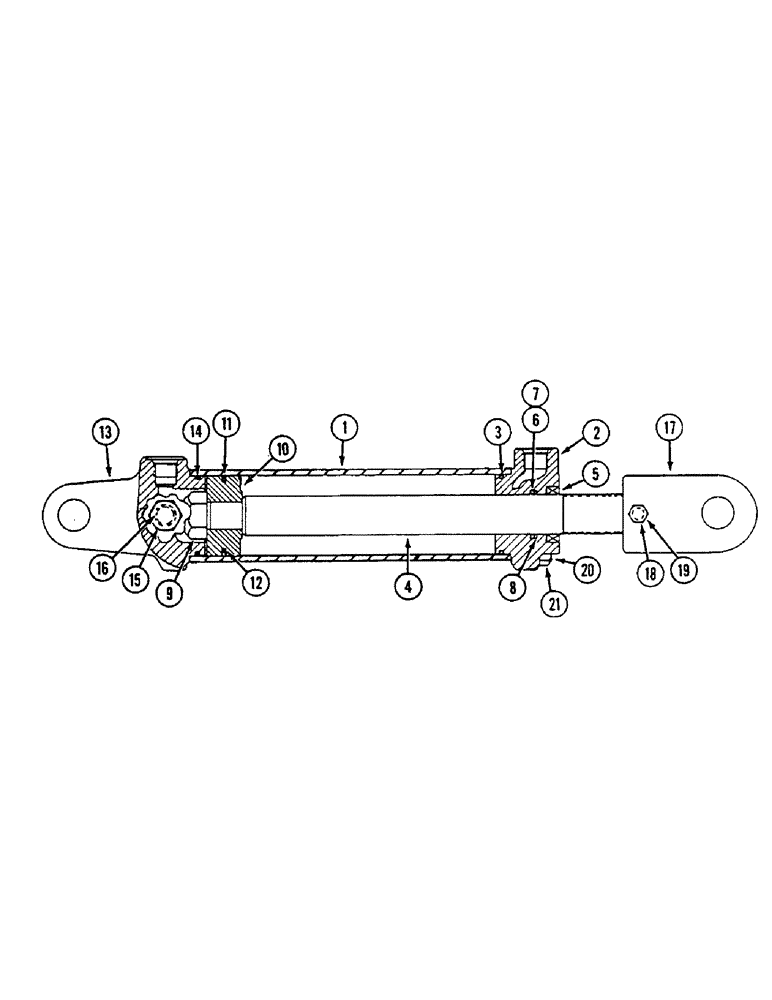

Запчасти Case IH 4500 (8-040) - HYDRAULIC CYLINDER, WITH DUAL FRONT PORTS, 3 ID X 8 INCH STROKE, IH (08) - HYDRAULICS

145210C92

CYLINDER

ASSEMBLY - 3 ID x 8 inch stroke (No longer available, order 1272146C91 cylinder assembly, page 8-45)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272762C1

HEAD

GLAND - cylinder (Replaces 145224C1 and 1260877C1)

1шт.

3

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

4

145231C1

PISTON ROD

ROD - piston

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N 79976C2.

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod (Use with 1260877C1 and 1272762C1 gland, see Ref. 2)

1шт.

Part of seal kit P/N 79976C2.

1шт.

7

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

Use with 145224C1 gland, see Ref. 2 -218, 90 Duro, 1.234" ID x .139" Thk

1шт.

8

546279R1

WASHER

RING - backup, piston rod O-ring (Use with 145224C1 gland, see Ref. 2)

1шт.

9

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

10

145225C2

PISTON

- cylinder

1шт.

11

387373R1

RING

SEAL - piston

1шт.

Part of seal kit P/N 79976C2.

1шт.

12

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

13

1272761C1

HEAD

- cylinder, closed end (Replaces 145222C1)

1шт.

14

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 79976C2.

1шт.

17

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

18

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

145249C1

BOLT,7/16" - 14 x 324mm

- tie, cylinder

4шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

79976C2

SEAL KIT

KIT - seal, use with 1260877C1 and 1272762C1 gland, Includes: Ref. 3, 5, 6, 11, 12, 14, 16 and (2) backup rings not used in this cylinder

1шт.
