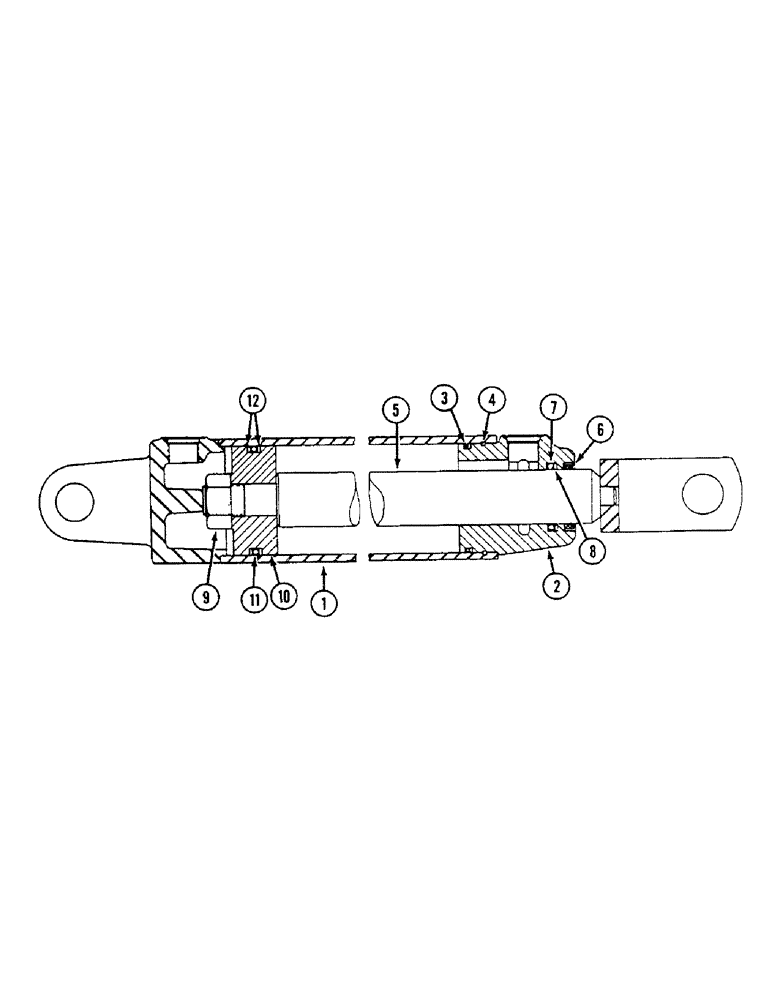

Запчасти Case IH 4500 (8-038) - HYDRAULIC CYL., WITH DUAL FRONT PORTS, 3 ID X 8 INCH STROKE, IH, MACHINES BUILT PRIOR TO JULY 1981 (08) - HYDRAULICS

381854R94

CYLINDER

ASSEMBLY - 3 ID x 8 inch stroke (No longer available, order 1272146C91 cylinder assembly, page 8-45)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

381805R2

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2-3/4 ID x 3 inch OD

1шт.

Part of seal kit P/N 386687R93.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

Part of seal kit P/N 386687R93.

1шт.

5

73763C1

ROD ASSY.

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod (Replaces seal and seal retainer)

1шт.

Part of seal kit P/N 386687R93.

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 386687R93.

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 386687R93.

1шт.

9

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

10

381870R1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3 inch OD

1шт.

Part of seal kit P/N 386687R93.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

Part of seal kit P/N 386687R93.

1шт.

25419R1

PIN

- headed, 1 x 2-3/4 inch (Not shown)

2шт.

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter (Not shown)

2шт.

386687R93

SEAL KIT

- seal, Includes: Ref. 3, 4, 6 - 8, 11 and 12, plus (1) seal and (1) seal retainer not used on this cylinder

1шт.
