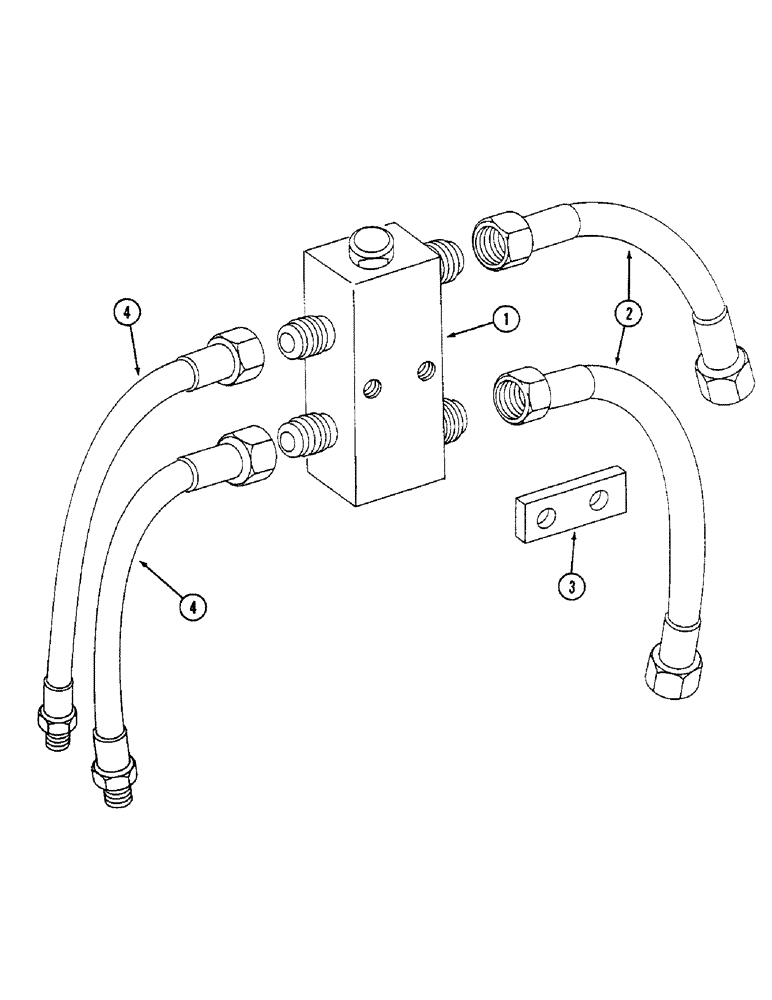

Запчасти Case IH 4500 (8-024) - HYDRAULIC SYSTEM, WING TYPE MODELS, ALTERNATING CHECK VALVE ASSEMBLY (08) - HYDRAULICS

1

142864C95

VALVE

ASSEMBLY - alternating check

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

2

393704R92

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 31 inch (Replaces 125914C1 hose)

2шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - tube, Style B, 1/2 inch

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING - reducer, 1/2 x 3/8 inch

2шт.

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - tube, style B, 5/8 inch

2шт.

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

FITTING - reducer, 5/8 x 3/8 inch

2шт.

3

810201C1

BAR

- valve support

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

4

117064C1

HOSE

- hydraulic, 1/2 x 48 inch

2шт.
