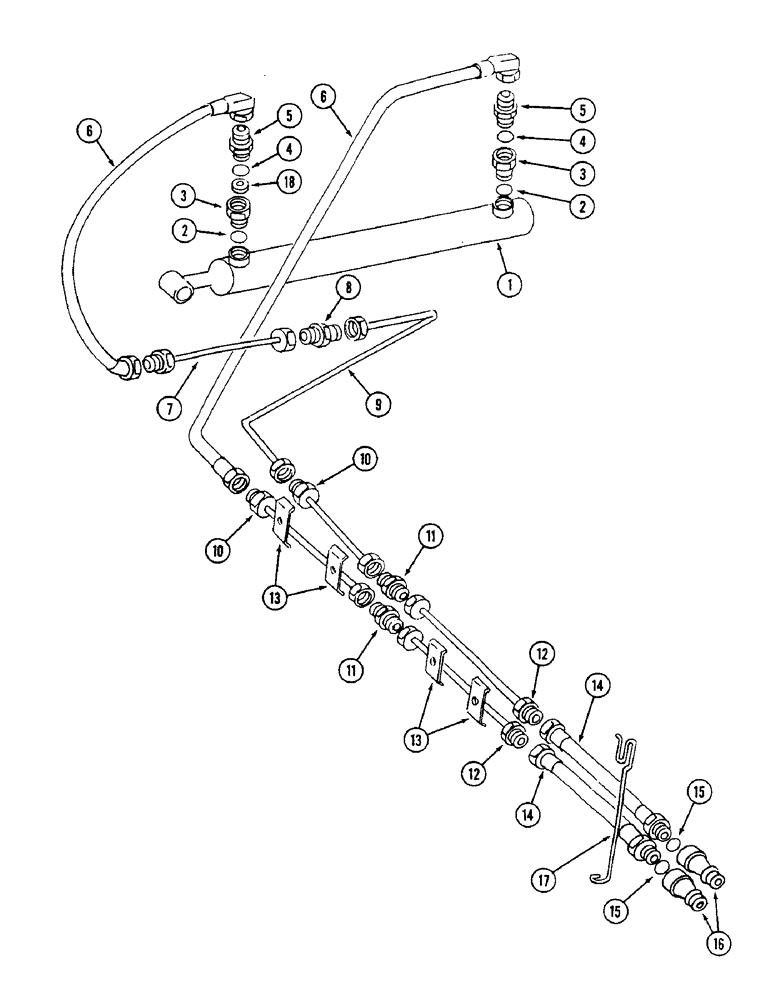

Запчасти Case IH 4500 (8-014) - HYDRAULIC SYSTEM, WING TYPE MODELS, WING LIFT, 31 FOOT 6 INCH BASIC SIZE (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Cross, 3 x 48 inch (See page 8-51)

1шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Prince, 3 x 48 inch (See page 8-53)

1шт.

813452C1

PIN

- cylinder mounting

2шт.

32-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

21214R1

WASHER

- flat, 1-5/32 x 2 x 7/64 inch

8шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

610952R1

ADAPTER

- straight, 3/4-16 inch flare x 9/16-18 inch female o-ring boss

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x o-ring boss

2шт.

6

147878C1

HOSE

- hydraulic, 1/4 x 65 inch (Replaces 100849C1 hose)

2шт.

7

813427C1

TUBE

ASSEMBLY - 41 inch, pressure flow

1шт.

8

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare

1шт.

9

813398C1

TUBE

ASSEMBLY - pressure flow

1шт.

10

813214C1

TUBE

ASSEMBLY - 73 inch, pressure and return

2шт.

11

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare

2шт.

12

813401C1

HOSE,0.375" OD, 107.5, 5" Length

TUBE ASSEMBLY - 108 inch, pressure and return

2шт.

13

614323R2

CLAMP

- hydraulic tube

5шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

14

811270C1

HOSE

- 1/2 x 80 inch, pressure and return

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

16

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

16

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

17

651793R2

SUPPORT

- hydraulic hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

18

610767R1

DISC

WASHER - lift cylinder restrictor (Use with Cross cylinder assembly, item 1)

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
