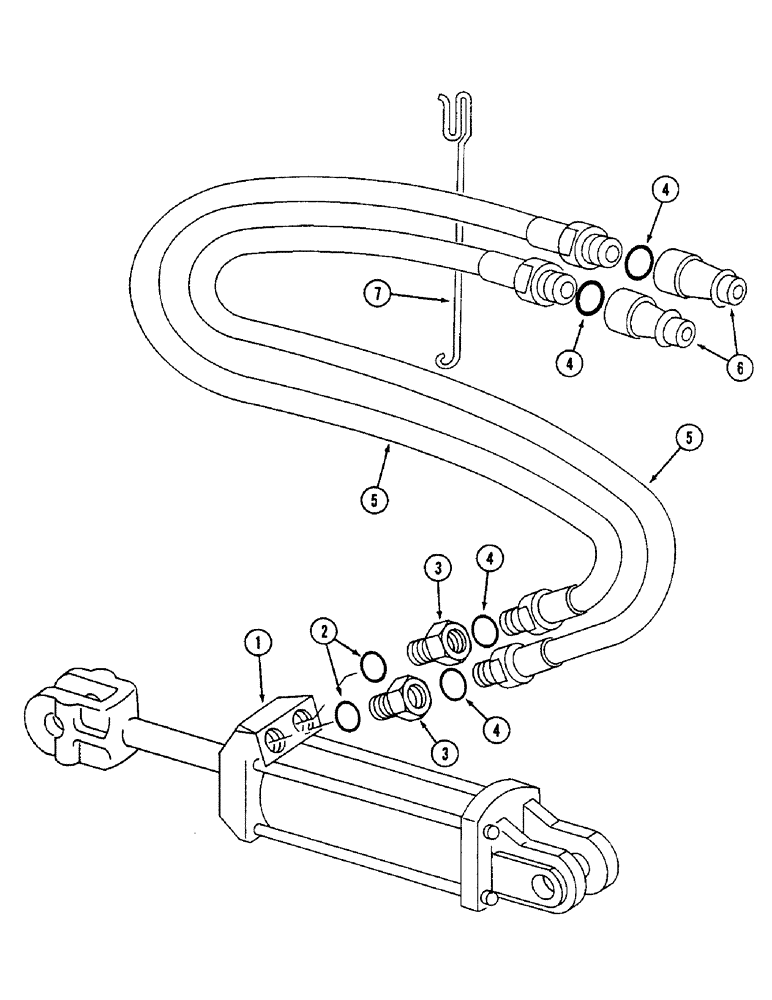

Запчасти Case IH 4500 (8-010) - HYDRAULIC SYSTEM, TRAIL BEHIND MODELS, DEPTH CONTROL (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Victor, 3-1/2 x 8 inch (See page 8-75)

1шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 3-1/2 x 8 inch (See page 8-69 or 8-83)

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

520175R1

CLIP

PIN - cotter, quick attachable

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - straight, 3/4-16 male x 7/8-14 inch female o-ring boss

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

5

372437R91

HOSE

- hydraulic, 1/2 x 112 inch

2шт.

6

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

6

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type (Use only with Victor cylinder assembly)

2шт.

6

1272399C2

QUICK MALE COUPLING

COUPLER ASSEMBLY - self sealing male, 7/8-14 thread ISO Standard (Use only with Victor cylinder assembly)

2шт.

7

651793R2

SUPPORT

- hydraulic hose (for 12 foot 6 inch basic size only)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.
