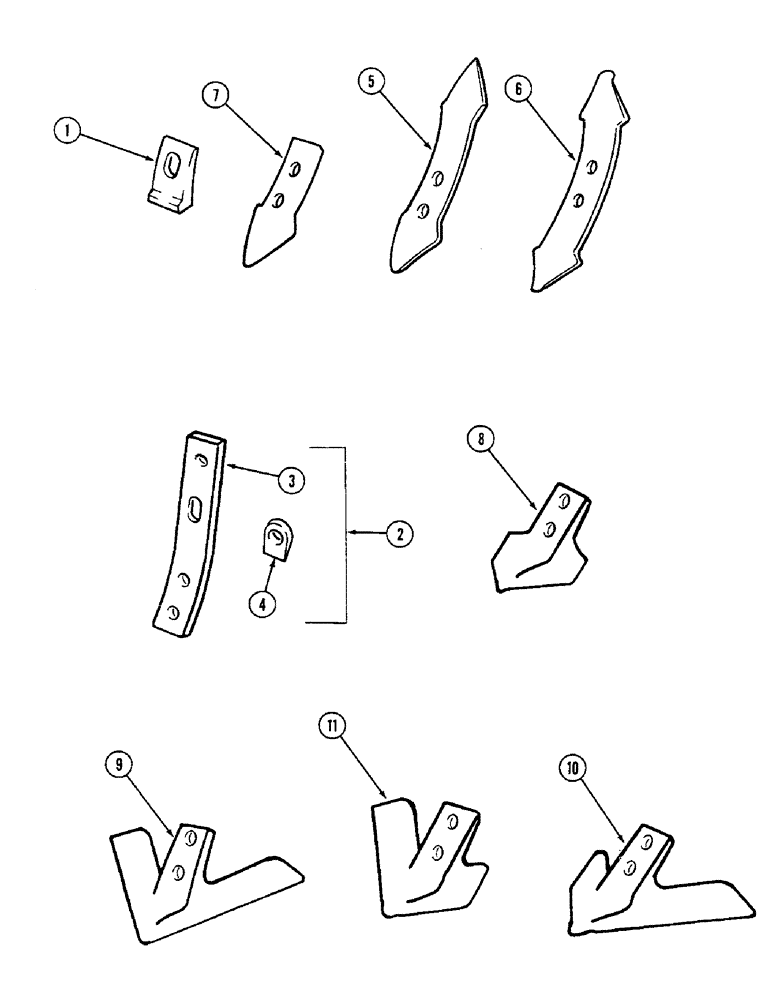

Запчасти Case IH 4500 (9-100) - TOOLING EQUIPMENT, GROUND WORKING TOOLS (09) - CHASSIS/ATTACHMENTS

1

592811R1

WEDGE

- sweep spacer (See Note A)

1шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

BOLT - round head square neck, 7/16 NC x 1-5/8 inch

1шт.

495-81010

WASHER,.469" x 1 1/4" x .060"

- flat, 15/32 x 1-1/4 x 1/16 inch

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

2

594544R11

CABLE EXTENSION

KIT - sweep extension (See Note B)

1шт.

3

NSS

NOT SOLD SEPARAT

EXTENSION - sweep

1шт.

4

605658R1

WASHER

WEDGE, sweep extension

1шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT - round head square neck, 7/16 NC x 1-3/8 inch

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

495-81010

WASHER,.469" x 1 1/4" x .060"

- flat, 15/32 x 1-1/4 x 1/16 inch (On top bolt)

2шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

5

811889C1

POINT

- 2 inch, reversible pencil

1шт.

5

596623R1

POINT

- 1-3/4 inch , reversible chisel

1шт.

6

811799C1

POINT

- 2 inch, reversible chisel

1шт.

7

594227R1

TOOTH

POINT - 2 inch, pencil

1шт.

8

591588R1

TIP

SHOVEL - 4-1/2 inch (Replaces 1980639C1)

1шт.

9

1980639C1

SHOVEL

SWEEP - 4-1/2 inch (Replaces 591588R1 shovel, see Ref 8)

1шт.

9

1980640C1

SHOVEL

SWEEP - 6 inch

1шт.

9

1980641C1

TIP

SWEEP - 7-1/2 inch (Replaces 591589R2)

1шт.

9

1980642C1

SWEEP

- 9 inch (Replaces 591590R2)

1шт.

9

1980643C1

SHOVEL

SWEEP - 10-1/2 inch

1шт.

9

1980644C1

STAY

SWEEP - 12 inch (Replaces 597461R1)

1шт.

10

1980991C1

SHOVEL

SWEEP - 7-1/2 inch, right wing clipped (Replaces 591665R2)

1шт.

10

1980993C1

SHOVEL

SWEEP - 9 inch, right wing clipped (Replaces 591667R2)

1шт.

11

1980990C1

SHOVEL

SWEEP - 7-1/2 inch, left wing clipped (Replaces 591666R2)

1шт.

11

1980992C1

SHOVEL

SWEEP - 9 inch, left wing clipped (Replaces 591668R2)

1шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT - round head square neck, 7/16 NC x 1-3/8 inch (Ground working tool to shank)

2шт.

495-81010

WASHER,.469" x 1 1/4" x .060"

- 15/32 x 1-1/4 x 1/16 inch (On lower bolt)

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

810220C1

PLOW BOLT,#3, 3/8" - 16 x 1.37"

BOLT - round head square neck, special, 3/8 NC x 7/16 inch (For mounting competitor ground working, Serial Range: tool-shank)

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.
