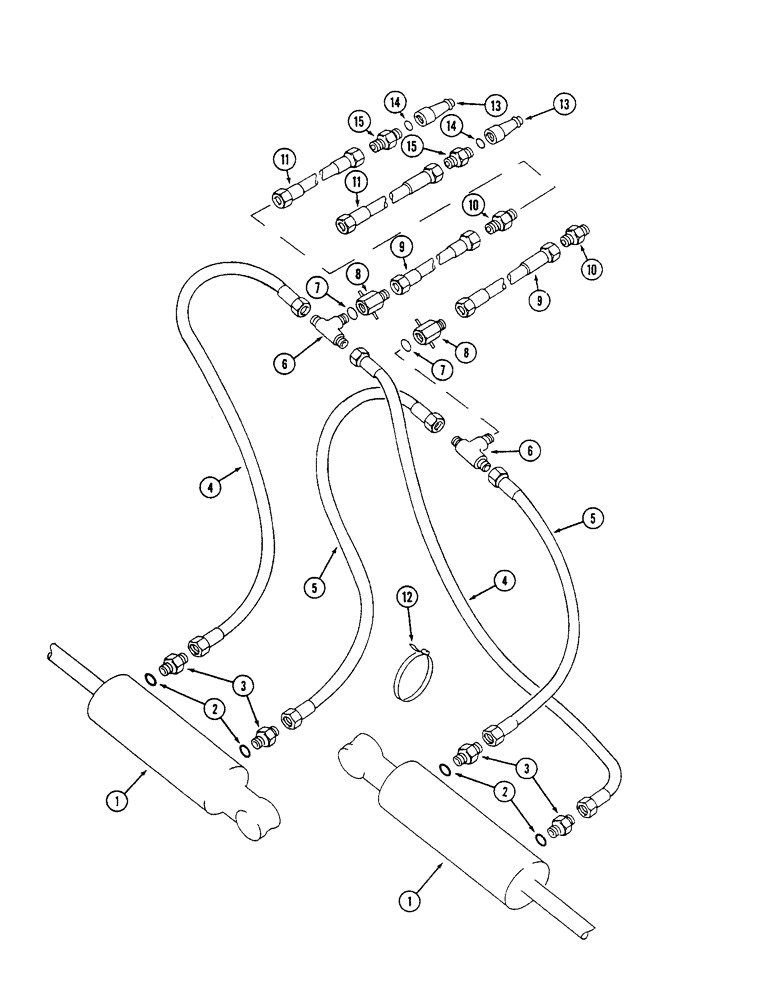

Запчасти Case IH 4500 (8-008) - HYD. SYS., TRAIL BEHIND MODELS, C FRAME LIFT, HYD. CYL. W/ FRONT & REAR PORTS, MACHINES W/O MULCHERS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Monarch, 2-1/2 x 8 inch, for 16 foot 6 inch to 19 foot 6 inch basic sizes (See page 8-85)

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Monarch, 3 x 8 inch, for 16 foot 6 inch to 21 foot 6 inch basic sizes (See page 8-43)

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 3-1/2 x 8 inch, for 20 foot 6 inch basic size and larger (See page 8-83 or 8-87)

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Monarch, 2-1/2 x 8 inch, for 16 foot 6 inch to 18 foot 6 inch basic sizes (See page 8-35), machines with mulchers

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Monarch, 3 x 8 inch, for 16 foot 6 inch to 20 foot 6 inch basic sizes (See page 8-43), machines with mulchers

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 3-1/2 x 8 inch, for 19 foot 6 inch basic size and larger (See page 8-83 or 8-87), machines with mulchers

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (See Note A), All machines

4шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss (See Note A), all machines 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

3

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 1/2-20 inch flare (See Note B), all machines

2шт.

4

813537C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 65 inch, all machines

2шт.

5

813267C1

HOSE

- hydraulic, 3/8 x 55 inch, all machines

2шт.

6

9411118

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

- adjustable, 1/2 inch, all machines

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, All machines

2шт.

8

814056C1

VALVE

- hydraulic restrictor, all machines

2шт.

9

813267C1

HOSE

- hydraulic, 3/8 x 55 inch, all machines

2шт.

10

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

CONNECTOR - straight, 3/4-16 inch flare, all machines

2шт.

11

810250C1

HOSE

- hydraulic, 3/8 x 114 inch, all machines

2шт.

12

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch, all machines

8шт.

13

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type, all machines

2шт.

13

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type, all machines

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, All machines

2шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, all machines 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.
