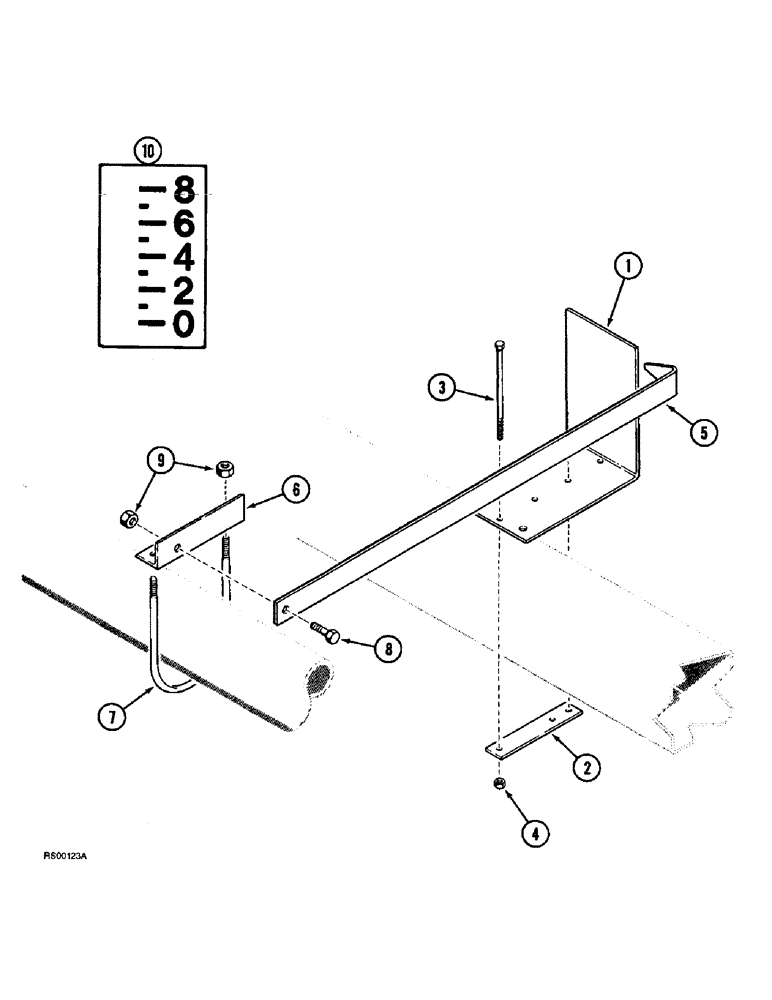

Запчасти Case IH 4300 (9-106) - DEPTH GAUGE AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

181955A1

SUPPORT

BRACKET - depth gauge

1шт.

2

91371C1

BAR

- depth gauge clamping

1шт.

3

413-480

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- hex, 1/4 NC x 5 inch

2шт.

4

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

5

181954A1

BAR

- depth indicator

1шт.

6

91370C1

ANGLE

BRACKET - depth indicator bar

1шт.

7

26943R1

U-BOLT,3/8" - 16 x 5 1/2"

- 3/8 inch NC

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

10

91372C1

DECAL

- depth gauge

1шт.
