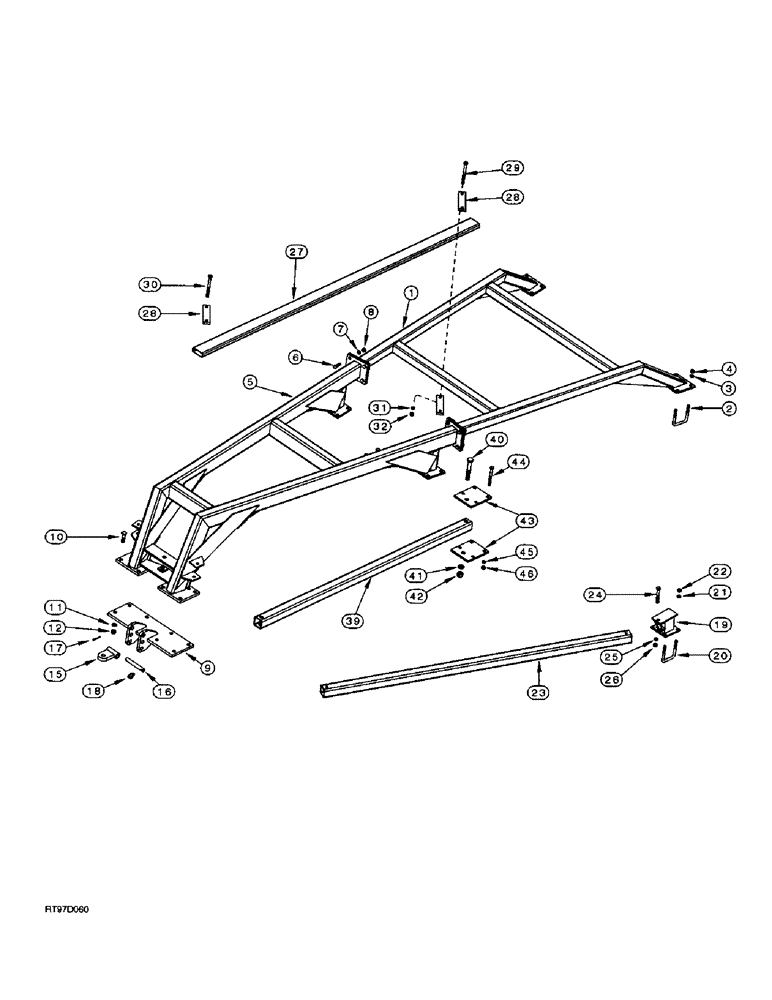

Запчасти Case IH 4300 (9-104) - HITCH, CONCORD TANK (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
283217A1
HITCH ASSY
FRAME - hitch, front, Concord tank
1шт.
2
608294R1
U-BOLT,U, 5/8" - 11 x 134mm
- 5/8 inch NC
4шт.
3
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
4
329-1010
NUT,5/8"-11, G8
8шт.
5
283218A1
HITCH ASSY
FRAME - hitch, rear, Concord tank
1шт.
6
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
- hex, 5/8 NC x 2 inch
8шт.
7
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
8
329-1010
NUT,5/8"-11, G8
8шт.
9
283211A1
TOW BAR
BAR - hitch
1шт.
10
326-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8
8шт.
11
492-11075
LOCK WASHER,3/4"
3/4"
8шт.
12
329-1012
NUT,3/4"-10, G8
8шт.
15
1015144W
TOW BAR
TONGUE - hitch
1шт.
16
256056A1
PIN
- hitch
1шт.
17
432-1636
COTTER PIN,1/4" x 2 1/4"
Pin, Split (Cotter), 1/4" x 2 1/4"
1шт.
18
D33805
PIN
- locking
1шт.
19
247651A1
TUBE
BRACKET - side support
2шт.
20
608294R1
U-BOLT,U, 5/8" - 11 x 134mm
- 5/8 inch NC
4шт.
21
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
22
329-1010
NUT,5/8"-11, G8
8шт.
23
283220A1
SUPPORT TUBE,2355.8 mm Length
TUBE - side support
2шт.
24
326-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 8
4шт.
25
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
26
329-1010
NUT,5/8"-11, G8
8шт.
27
250941A1
TUBE,2920 mm Length
- frame
1шт.
28
181759A1
BAR
- clamping
4шт.
29
326-10112
BOLT,Hex, 5/8" - 11 x 7", Gr 8
2шт.
30
413-10144
BOLT,Hex, 5/8" - 11 x 9", Gr 5
- hex, 5/8 NC x 9 inch
2шт.
31
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
32
425-1010
NUT,5/8"-11, G5
4шт.
39
283219A1
TUBE,2156.9 mm Length
- center support
1шт.
40
413-16104
BOLT,Hex, 1" - 8 x 6-1/2", Gr 5
- hex, 1 NC x 6-1/2 inch
2шт.
41
492-11100
LOCK WASHER,1"
1"
2шт.
42
425-1016
NUT,1"-8, G5
2шт.
43
283216A1
TOW BAR
PLATE - attaching, center support
2шт.
44
413-1096
BOLT,Hex, 5/8" - 11 x 6", Gr 5
- hex, 5/8 NC x 6 inch
4шт.
45
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
46
329-1010
NUT,5/8"-11, G8
4шт.
Выбрано товаров: 38
