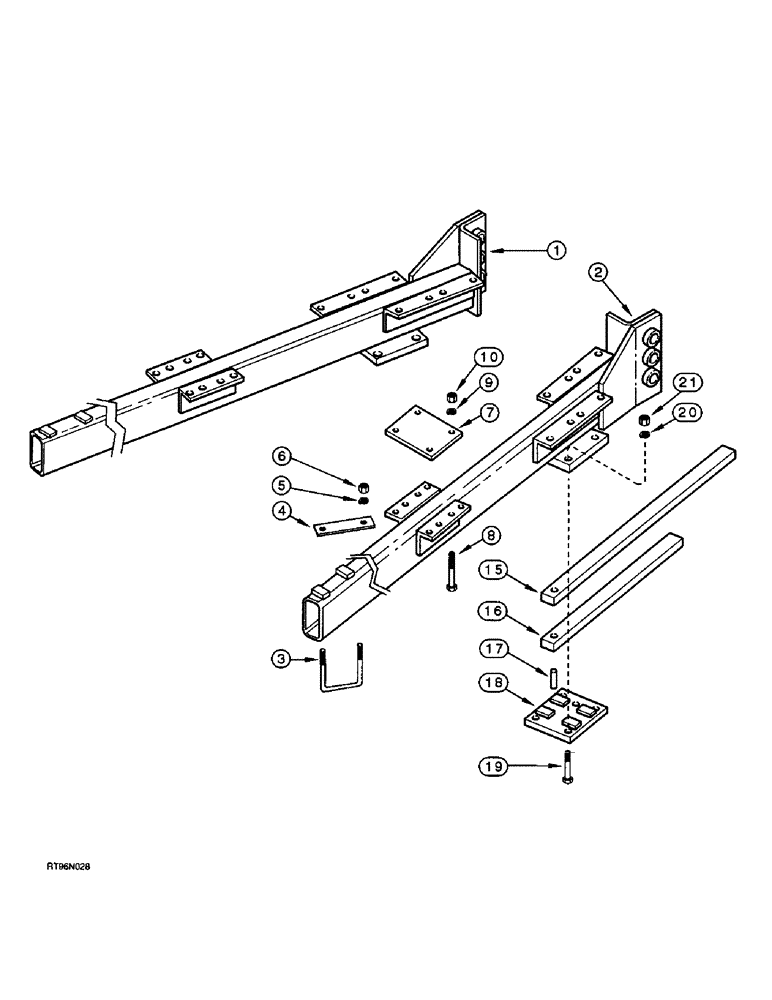

Запчасти Case IH 4300 (9-098) - FLOATING HITCH, HITCH BEAMS (09) - CHASSIS/ATTACHMENTS

1

140390A1

HITCH ASSY

BEAM - hitch, left-hand

1шт.

2

140391A1

HITCH ASSY

BEAM - hitch, right-hand

1шт.

3

812864C1

U-BOLT,5/8" - 11 x 11.6"

- 5/8 NC x 11-5/8 inch

2шт.

4

812865C1

BAR

- clamp

2шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

7

222249A1

LARGE PLATE

PLATE - clamping

4шт.

8

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

16шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

425-1010

NUT,5/8"-11, G5

16шт.

15

187525A1

SPRING

- leaf

2шт.

16

187526A1

SPRING

- leaf, helper

2шт.

17

224013A1

ROD

- spring aligning

2шт.

18

223902A2

PLATE ASSY.

PLATE - spring clamping

2шт.

19

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

8шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

21

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.
