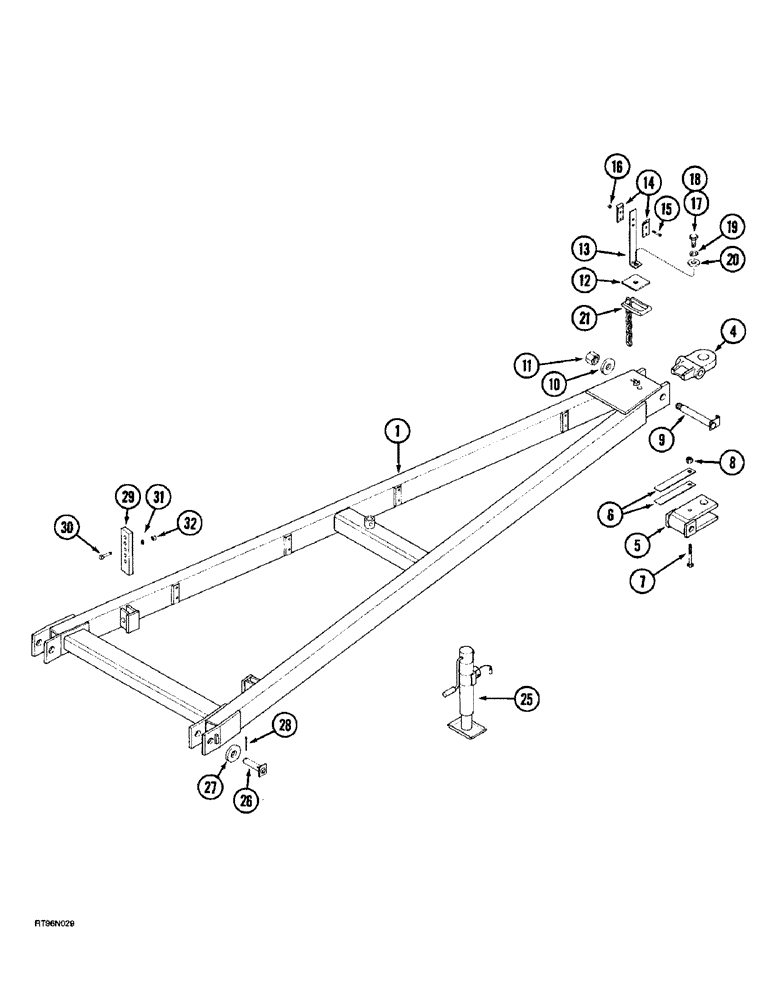

Запчасти Case IH 4300 (9-096) - FLOATING HITCH, FRONT HITCH (09) - CHASSIS/ATTACHMENTS

1

140400A1

HITCH ASSY

HITCH - front

1шт.

4

61023C3

HITCH

- hitch, tongue type, if used

1шт.

5

129900C2

CLEVIS

- hitch, clevis type, if used

1шт.

6

540475R1

SPRING

- clevis

2шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

8

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

9

121362C1

PIN

- hitch clevis

1шт.

10

495-21138

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

4шт.

11

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, self-locking, 1-1/4 inch NC

1шт.

12

822395C1

BAR

PLATE - hose support bracket mounting

1шт.

13

58643C1

SUPPORT

- hydraulic hose

1шт.

14

58644C1

HOLDER

- hydraulic hose

1шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

16

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

17

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch

1шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

21

REF

INSTRUCTION

CHAIN - safety (See Page 9-87)

1шт.

25

121557A1

JACK ASSY.

JACK - hitch

1шт.

26

1960442C1

PIN

- linkage

2шт.

27

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch

2шт.

28

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

29

251554A1

BAR

- adjusting

2шт.

30

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch

2шт.

31

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

32

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.
