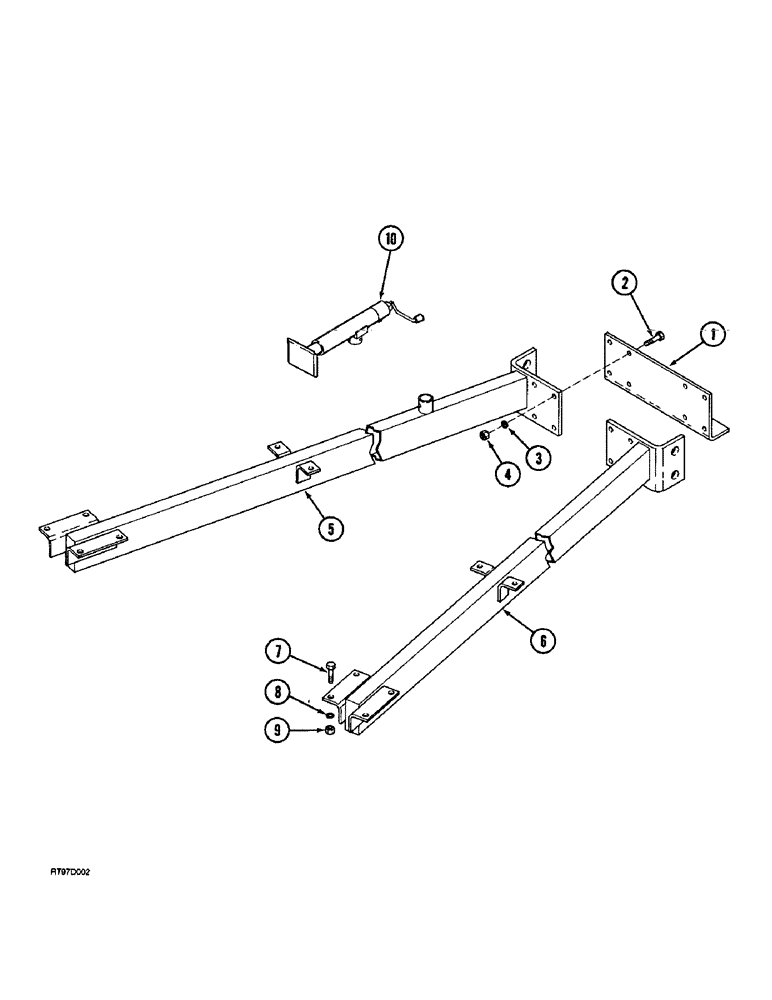

Запчасти Case IH 4300 (9-092) - LEVEL LIFT HITCH, NARROW TRANSPORT, BEAMS (09) - CHASSIS/ATTACHMENTS

1

1284135C2

ANGLE

BRACKET - hitch connecting

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

141634A1

TUBE,2072 mm Length

BEAM - hitch, left-hand

1шт.

6

141635A1

TUBE

BEAM - hitch, right-hand

1шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

12шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

9

425-1010

NUT,5/8"-11, G5

12шт.

10

121557A1

JACK ASSY.

JACK - hitch

1шт.
