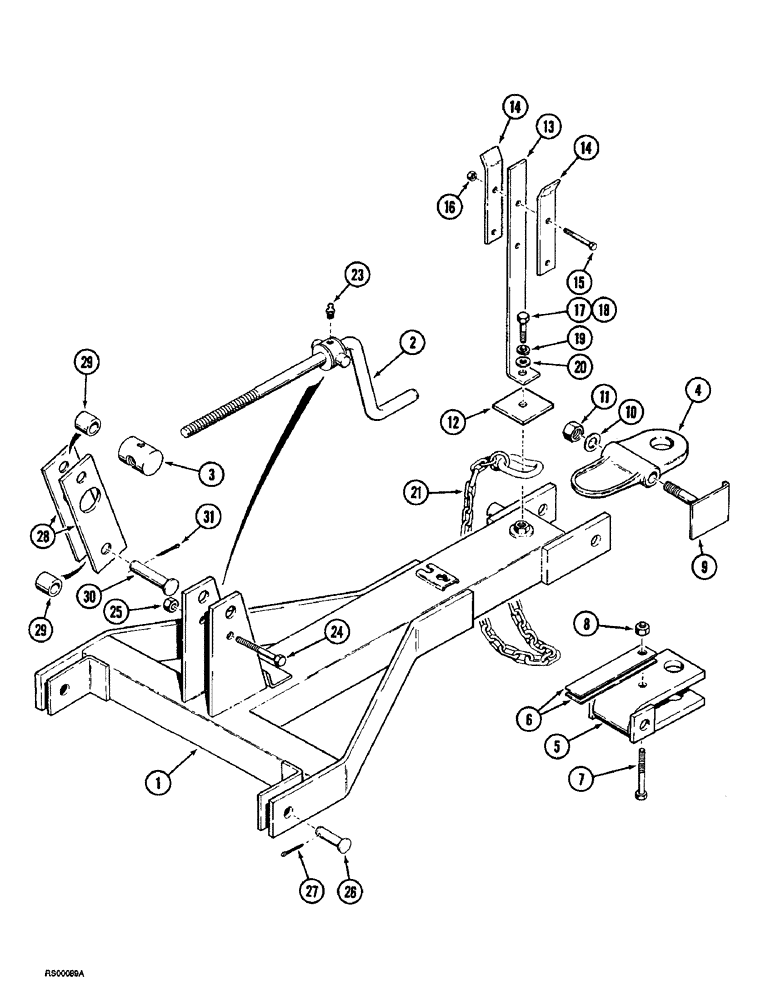

Запчасти Case IH 4300 (9-090) - LEVEL LIFT HITCH, LOW TRANSPORT AND STANDARD TRANSPORT, FRONT ADJUSTABLE HITCH (09) - CHASSIS/ATTACHMENTS

1

1284422C3

HITCH ASSY, TRAILER

HITCH ASSEMBLY - front

1шт.

2

1284429C1

CRANK

ASSEMBLY - front adjustable hitch

1шт.

3

60147C2

LINK

SWIVEL - crank

1шт.

4

61023C3

HITCH

- hitch, tongue type, if used

1шт.

5

129900C2

CLEVIS

- hitch, clevis type, if used

1шт.

6

540475R1

SPRING

- clevis

2шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

8

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

9

121362C1

PIN

- hitch clevis

1шт.

10

495-21138

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

4шт.

11

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, self-locking, 1-1/4 inch NC

1шт.

12

822395C1

BAR

PLATE - hose support bracket mounting (If used)

1шт.

13

58643C1

SUPPORT

- hydraulic hose

1шт.

14

58644C1

HOLDER

- hydraulic hose

1шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

16

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

17

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch

1шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

21

REF

INSTRUCTION

CHAIN - safety (See Page 9-79)

1шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

24

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

25

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

Part Number 427-20325, if the dealer is looking for a bolt, part number is 252079A1, and the bolt is 28748R1. used with hitch 176490A1.

1шт.

26

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, hardened

2шт.

27

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

28

1284425C1

BAR

- front pivot

1шт.

29

21696R1

SPACER,1" Pipe x 1 3/8"

- pipe, 1 ID x 1-3/8 inch

2шт.

30

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

PIN - headed, 1 x 3-3/4 inch

2шт.

31

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.
