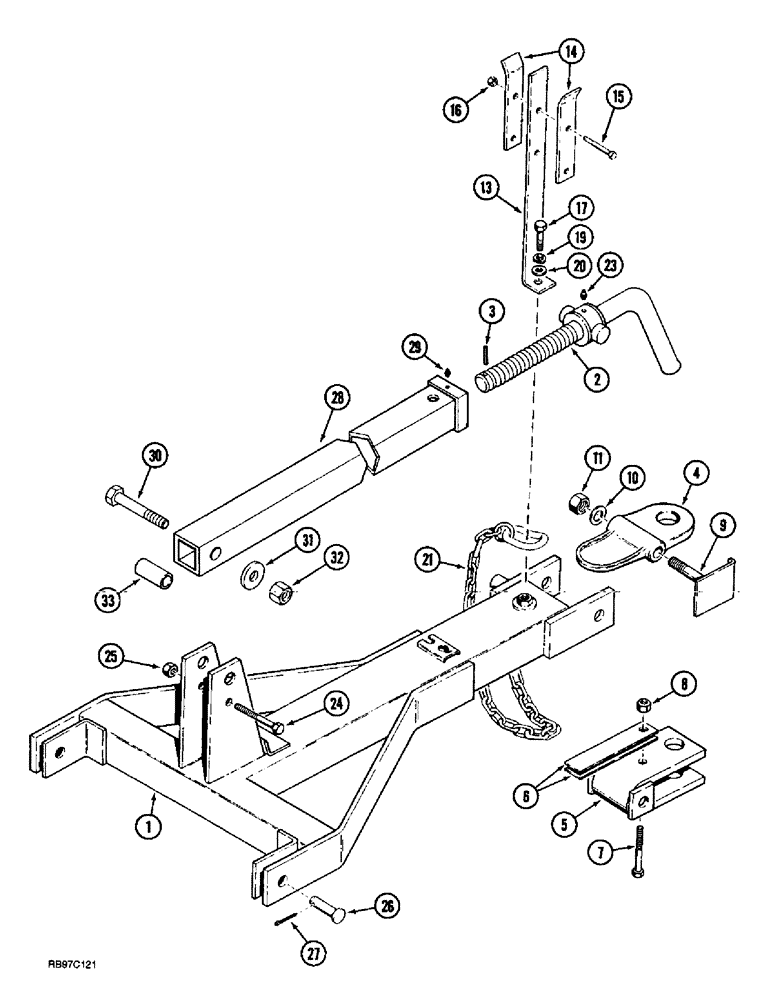

Запчасти Case IH 4300 (9-088) - LEVEL LIFT HITCH, NARROW TRANSPORT, FRONT ADJUSTABLE HITCH (09) - CHASSIS/ATTACHMENTS

1

1995702C1

HITCH ASSY

HITCH ASSEMBLY - front, adjustable

1шт.

2

1985906C1

CRANK

- front adjustable hitch

1шт.

3

438-31620

PIN,1/4" x 1 1/4", Coiled

1шт.

4

61023C3

HITCH

- hitch, tongue type, if used

1шт.

5

129900C2

CLEVIS

- hitch, clevis type, if used

1шт.

6

540475R1

SPRING

- clevis

2шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

8

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

9

121362C1

PIN

- hitch clevis

1шт.

10

495-21138

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

4шт.

11

231-41420

LOCK NUT,1 1/8"-7, GB

NUT - hex, self-locking, 1-1/4 inch NC

1шт.

13

58643C1

SUPPORT

- hydraulic hose

1шт.

14

58644C1

HOLDER

- hydraulic hose

1шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

16

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

17

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

21

REF

INSTRUCTION

CHAIN - safety (See Page 9-100)

1шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

24

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

25

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

Part Number 427-20325, if the dealer is looking for a bolt, part number is 252079A1, and the bolt is 28748R1.

1шт.

26

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, hardened

2шт.

27

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

28

225565A1

TUBE

- connecting

1шт.

29

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

30

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

1шт.

31

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 11/64 inch

1шт.

32

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

33

1985917C1

SPACER

- pipe, 3/4 ID x 3-7/16 inch (If Used)

1шт.
