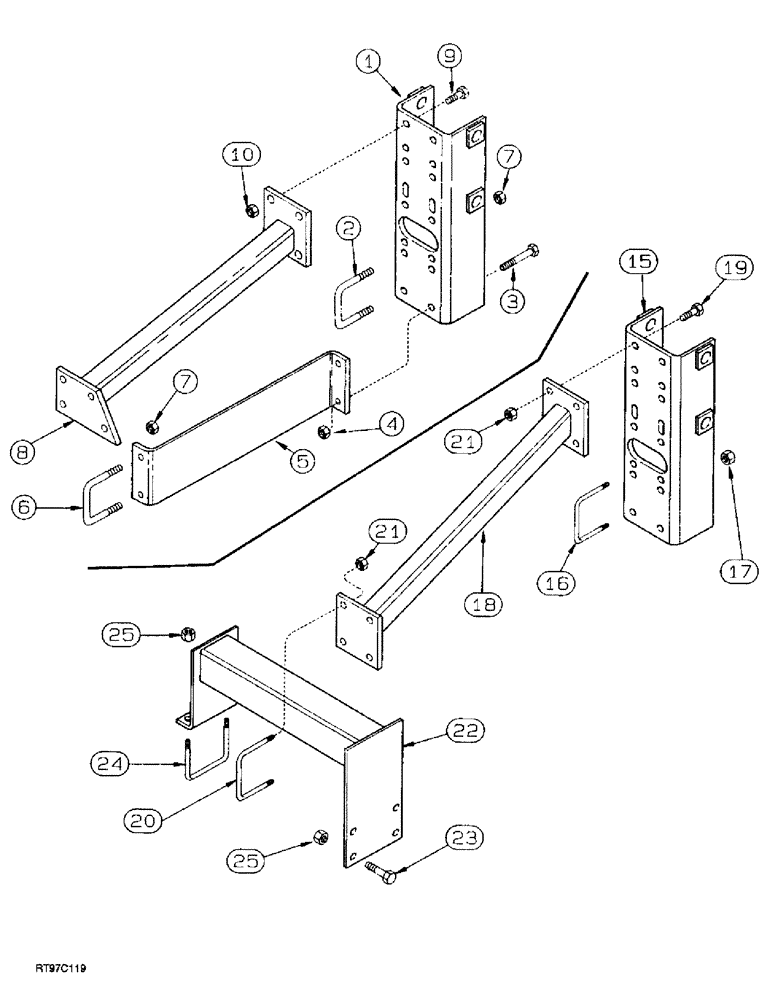

Запчасти Case IH 4300 (9-086) - CASTER WHEEL MOUNTING (09) - CHASSIS/ATTACHMENTS

1

226538A1

BRACKET

- caster wheel mounting, 12 ft primary wing, double fold

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 12 ft primary wing, double fold

2шт.

3

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch, 12 ft primary wing, double fold

4шт.

4

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 12 ft primary wing, double fold

4шт.

5

142350A1

BRACE

- front extension, 12 ft primary wing, double fold

2шт.

6

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 12 ft primary wing, double fold

2шт.

7

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 12 ft primary wing, double fold

4шт.

8

185047A1

BRACE

- caster wheel, right-hand (Shown), 12 ft primary wing, double fold

1шт.

8

140419A1

BRACE

- caster wheel, left-hand, 12 ft primary wing, double fold

1шт.

9

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, 12 ft primary wing, double fold

8шт.

10

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 12 ft primary wing, double fold

8шт.

15

226538A1

BRACKET

- caster wheel mounting, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

2шт.

16

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

4шт.

17

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

8шт.

18

138982A1

BRACE

- caster wheel, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

2шт.

19

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

8шт.

20

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

4шт.

21

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

16шт.

22

138985A1

CASING

TOWER - caster wheel mounting, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

2шт.

23

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

8шт.

24

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

2шт.

25

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 6 ft secondary wing, double fold, 9 ft wing, vertical fold

12шт.
